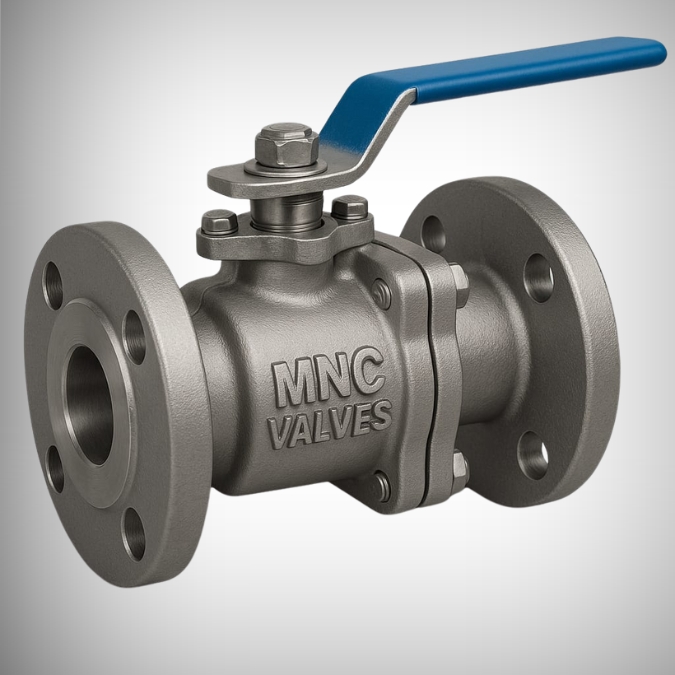

2 Piece Ball Valve
- 𝗕𝗼𝗱𝘆 𝗠𝗮𝘁𝗲𝗿𝗶𝗮𝗹 (WCB / CF8 / CF8M)
- 𝗣𝗿𝗲𝘀𝘀𝘂𝗿𝗲 𝗖𝗹𝗮𝘀𝘀 (150# / 300# / PN16)
- 𝗘𝗻𝗱 𝗖𝗼𝗻𝗻𝗲𝗰𝘁𝗶𝗼𝗻 (Full Flanged ASME / DIN)
- 𝗙𝗶𝗿𝗲-𝗦𝗮𝗳𝗲 & Anti-Blowout Stem Design
- 𝗦𝗲𝗮𝘁 𝗠𝗮𝘁𝗲𝗿𝗶𝗮𝗹 (PTFE / R-PTFE / Graphite)
Description
| Description | Details |
|---|---|
| Valve Type | 2 Piece design |
| Body | ASTM A 216 Gr WCB |
| Ball | AISI 304 / ASTM A 351 Gr CF8 |
| Stem | AISI 304 |
| Seat To Seal | PTFE |
| Test STD | BS 6755 |
| Lever | CARBON STEEL WITH PVC SLEEVE |
| Ends | FLANGED TO ASME B 16.5 (150#) |
| HYD-TEST PRESSURE | BODY : 450 Psig (32 Kg/Cm²)/SEAT : 315 Psig (22 Kg/Cm²) |
| Size Range | 15 MM TO 600 MM |
| Series No. | BV 2202 |
| Quantity | Please refer to customer annexure |
