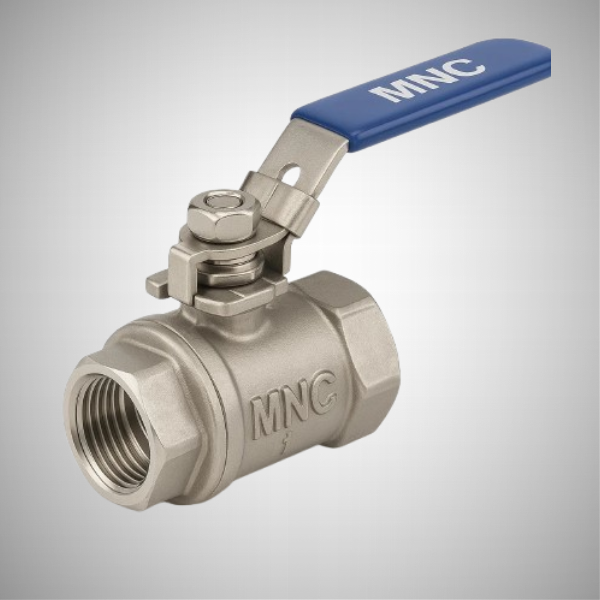

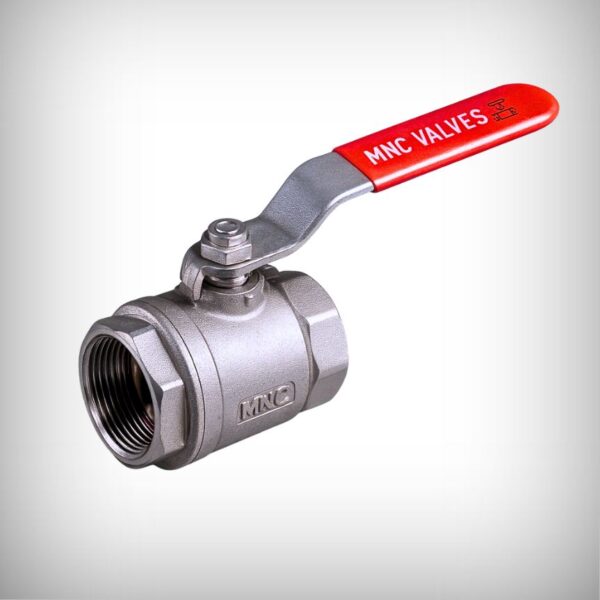

Ball Valve
- 𝗠𝗮𝘁𝗲𝗿𝗶𝗮𝗹 𝗚𝗿𝗮𝗱𝗲 (SS304 / SS316)
- 𝗣𝗿𝗲𝘀𝘀𝘂𝗿𝗲 𝗥𝗮𝘁𝗶𝗻𝗴 (PN16 / 150#)
- 𝗘𝗻𝗱 𝗖𝗼𝗻𝗻𝗲𝗰𝘁𝗶𝗼𝗻 𝗧𝘆𝗽𝗲 (BSP / NPT)
- 𝗦𝗲𝗮𝘁 𝗠𝗮𝘁𝗲𝗿𝗶𝗮𝗹 (PTFE / R-PTFE)
- 𝗦𝗶𝘇𝗲 𝗔𝘃𝗮𝗶𝗹𝗮𝗯𝗶𝗹𝗶𝘁𝘆 (½” to 4″)
- 𝙋𝙧𝙞𝙘𝙚 𝙍𝙖𝙣𝙜𝙚 & 𝘽𝙧𝙖𝙣𝙙 𝙋𝙧𝙚𝙛𝙚𝙧𝙚𝙣𝙘𝙚 (𝙈𝙉𝘾 𝙑𝘼𝙇𝙑𝙀𝙎)
Description
| Description | Details |
|---|---|
| Valve Type | Ball Valve |
| Body Type | CI / CS / SS304 / SS316 / SS304L /SS316L |
| Ball | SS304 / SS316 |
| Body Design | 1PC. / 2PC./ 3PC |
| Seat & Seals | Seat & Seals |
| Mfg | ASTD BS 5159 / BS 5351 |
| Test | STD BS 6755 |
| Operation | Lever/Gear/Actuator-Pneumatic & Electric |
| Ends | Screwed / Socketweld Buttweld / Flanged |
| Class | 150# / 300# / 600# / 900# / 1500# / 2500# |
| Temperature | -40°C TO 180°C / 250°C |
| Size Range | 15MM TO 600MM |
| Media | AIR, WATER, STEAM, CHEMICAL, VISCOUS LIQUID, OIL & GAS |
| Quantity | Please refer to customer annexure |
Single Piece Flanged End Ball Valve

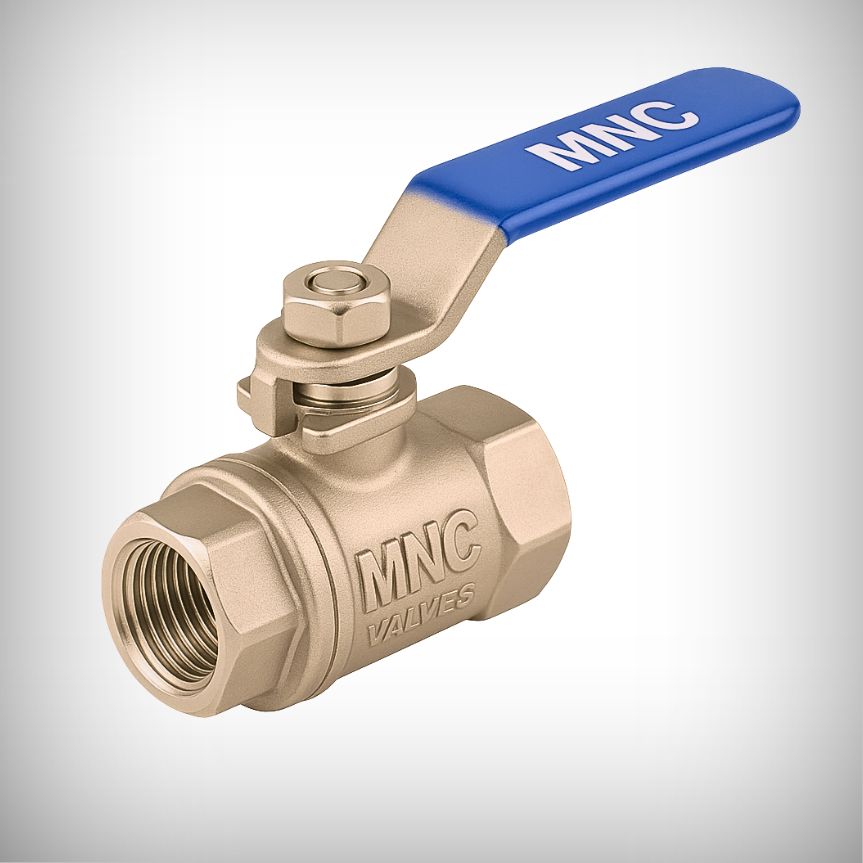

Single Piece Screwed End Ball Valve
Two Piece Flanged End Ball Valve
3 Piece Flanged End Ball Valve
3 Piece Screwed End Ball Valve
3 Way Flanged End Ball Valve
3 Way Screwed End Ball Valve
4 Way Flanged End Ball Valve
4 Way Screwed End Ball Valve
Trunnion Mounted Ball Valve
Additional information
| Weight | 36 kg |
|---|---|
| Dimensions | 25 × 25 × 25 cm |
| Warranty | 6 months |
| Fabric | Cotton, Silk & Synthetic |
| Color | Read, Blue, Green & Black |
