MNC Valves Ltd.
Non Return Valve Manufacturer in India
MNC Valves Limited offers a complete range of Non Return Valves, also commonly known as Check Valves, designed to prevent reverse flow, protect pumps and upstream equipment, and improve system safety in industrial pipelines. Our range includes Swing Check Valve, Dual Plate Check Valve, Disc Check Valve, and Wafer Check Valve for water, utility, chemical, process, and industrial service.
Automatic reverse flow prevention without manual operation
Protects pumps, compressors, and process equipment
Available in multiple configurations for different applications
Suitable for domestic and export-oriented industrial projects
Get a Quote
Download Catalogue
- MNC Valves Limited
- Non Return Valve / Check Valve Range
What is a Non Return Valve?
A Non Return Valve is an automatic valve designed to allow flow in one direction and prevent reverse flow in the opposite direction. It opens under forward flow pressure and closes automatically when flow stops or reverses.
In many industrial systems, reverse flow can cause pump damage, contamination, process instability, and equipment failure. A Non Return Valve is therefore one of the most important protective components in a piping system.
Depending on project requirements, Non Return Valves can be supplied in configurations suitable for different pressure classes, media conditions, connection types, and installation arrangements. For export projects, design and supply can be aligned with applicable customer specifications and relevant international standards such as API, ASME, and EN requirements where applicable to the project.
Why Non Return Valves Are Required
In a properly designed industrial system, process fluid is expected to move in a defined direction. If reverse flow occurs, it can create hydraulic shock, disturb process balance, damage pumps, and allow contamination of upstream equipment. A Non Return Valve provides automatic one-way flow protection and helps maintain the integrity of the system.
Reverse Flow Prevention
Prevents backflow automatically and maintains one-direction flow logic in the pipeline.
Pump Protection
Helps protect pumps from reverse rotation and flow reversal related mechanical damage.
Process Stability
Improves system safety and operating reliability where reverse flow is unacceptable.
Types of Non Return Valves

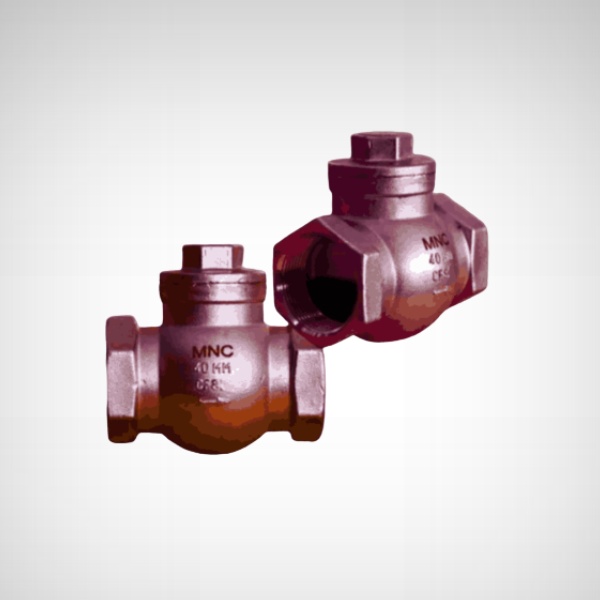

Swing Check Valve
A conventional non return design using a hinged disc. Widely used where full-flow passage and straightforward service logic are preferred.
Dual Plate Check Valve
Compact wafer-style design using two spring-loaded plates. Commonly selected where reduced face-to-face dimension and lower weight are important.
Water TreatmentDisc Check Valve
Compact automatic non-return design suitable for applications where space saving and fast closing behavior are useful.
Wafer Check Valve
Space-saving non return solution suitable for compact industrial installations and selected piping systems.
Commercial Clarification
In some markets, Dual Plate Check Valve is treated as a type of Wafer Check Valve. However, for commercial and website categorization purposes, both are often presented separately because buyers search for them differently.
Application-Based Selection
The correct type depends on flow conditions, line size, pressure drop limits, installation space, closing response, and project requirement.
Commercial Clarification
In some markets, Dual Plate Check Valve is treated as a type of Wafer Check Valve. However, for commercial and website categorization purposes, both are often presented separately because buyers search for them differently.
Application-Based Selection
The correct type depends on flow conditions, line size, pressure drop limits, installation space, closing response, and project requirement.
Key Benefits of Non Return Valves
Automatic Protection
Operates automatically according to flow direction without manual intervention.
Pump and Equipment Safety
Protects pumps and connected equipment from reverse flow damage.
Improved Process Reliability
Maintains stable flow direction and supports safer plant operation.
Wide Industrial Applicability
Suitable for water, chemicals, utilities, general process, and industrial transfer service.
Compact Options Available
Wafer and dual plate designs help where installation space and valve weight matter.
Flexible Configuration
Can be selected according to system duty, pressure conditions, and pipeline arrangement.
Applications of Non Return Valves
Water Treatment Plants
Used in pump discharge lines, filtration systems, RO skids, and process water pipelines.
Chemical Industry
Used where backflow prevention is essential to protect process integrity and equipment.
Power Plants
Applied in utility and process systems where flow reversal must be controlled reliably.
Oil & Gas / Utility Systems
Selected in applications where one-way flow control helps maintain system safety.
General Process Industry
Suitable for industrial pipelines and skids where automatic reverse flow prevention is required.
Pump Protection Systems
One of the most critical applications where pump reliability depends on non-return performance.
Typical Technical Parameters
Valve Type
Non Return Valve / Check Valve
Main Function
Automatic reverse flow prevention / one-way flow control
Operating Principle
Automatic opening on forward flow and automatic closing on reverse flow
Type Options
Swing Check / Dual Plate Check / Disc Check / Wafer Check
Body Material
WCB / CF8 / CF8M / application-specific construction
Trim / Disc Material
SS / corrosion-resistant / application-specific design
End Connection
Flanged / wafer / application-specific connection
Installation
Horizontal / vertical depending on valve design and application logic
Application Media
Water / chemicals / utility fluids / process fluids / industrial media
Typical Use
Pump discharge / process direction control / equipment protection
Non Return Valve vs Manual Isolation Valve
Feature
Non Return Valve
Manual Isolation Valve
Main Purpose
Automatic backflow prevention
Manual opening and closing of line flow
Operation
Automatic
Manual or actuated by command
Reverse Flow Protection
Yes
No, unless manually closed
Typical Use
Pump protection and one-way flow control
Isolation and maintenance shut-off
System Role
Protective automatic component
Control / isolation component
How to Select the Right Non Return Valve
Key Selection Factors
- Nature of media and fluid cleanliness
- Required closing response and cracking pressure consideration
- Line size and installation space
- Pressure drop limitations in the system
- Flanged or wafer installation preference
- Actual project specification or customer requirement
Practical Selection Logic
- Choose Swing Check Valve where conventional design and full-flow passage are preferred
- Choose Dual Plate or Wafer Check Valve where compactness, lower weight, and shorter face-to-face dimension matter
- Choose according to actual piping layout, installation direction, and pump protection need
- Always evaluate system duty, not just valve size, before final selection
Explore Our Check Valve Range
Swing Check Valve
Conventional non return design for general industrial service.
Dual Plate Check Valve
Compact wafer-style check valve with dual plate arrangement.
Disc Check Valve
Compact automatic non-return valve for selected piping applications.
Wafer Check Valve
Space-saving non return design for compact industrial installations.
Why Choose MNC Valves Limited for Non Return Valves
Application-Based Support Export Compatible Approach Pump Protection Logic Project-Oriented Guidance
Complete Check Valve Range
We provide multiple non return valve types to support different industries and piping requirements.
Selection Guidance
We help customers select the correct valve type according to service, pressure, space, and process requirement.
Project Support
Suitable for domestic projects as well as export-focused industrial requirements.
Need the Right Non Return Valve for Your System?
Contact MNC Valves Limited for application-based support, type selection guidance, and quotation for your Non Return Valve requirement.
Get Instant Quote
Talk to Expert
Type selection guidance
Pump protection application support
Project-ready quotation
Industrial and export-oriented requirement handling
MNC Valve Limited Popular Products
Ball Valve
Butterfly Valve
Gate Valve
Globe Valve
Strainers Valve
Non Return Valve
Control Valve
Other Valve
Ball Valve
2 Piece Flanged End Ball Valve
3 Piece Flanged End Ball Valve
3 Piece Screwed Ball Valve
3 Way Flanged End Ball Valve
3 Way Screwed Ball Valve
4 Way Screwed Ball Valve
4 Way Flanged Ball Valve
Single Piece Screwed Ball Valve
Trunnion Mounted Ball Valve
Butterfly Valve & Gate Valve
Damper Butterfly Valve
Double Flanged Butterfly Valve
Double Offset Butterfly Valve
Lug Type Butterfly Valve
High Performance Spherical Disc Butterfly Valve
Wafer Type Butterfly Valve
Knife Edge Gate Valve
Strainers Valve
Basket Strainer
Duplex Strainer
Pot Type Strainer
T Type Strainer
Y Type Strainer
Non Return Valve
Disc Check Valve
Dual Plate Check Valve
Swing Check Valve
Control Valve
Diaphragm Control Valve
Motorized Control Valve
Pneumatic Control Valve
Three Way Control Valve
Two Way Control Valve
Other Valve
Flush Bottom Ball Valve
Reactor Bottom Valve
Technical FAQs
1. What is a Non Return Valve?
A Non Return Valve is an automatic valve that allows flow in one direction and prevents reverse flow in the opposite direction.
2. Is a Non Return Valve the same as a Check Valve?
Yes. In industrial practice, Non Return Valve and Check Valve are commonly used for the same automatic backflow prevention function.
3. Why is a Non Return Valve important in pump systems?
It helps protect the pump from reverse flow, reverse rotation, and related hydraulic or mechanical damage.
4. Which type of Non Return Valve should I choose?
The right type depends on line size, media, installation space, pressure drop, cracking pressure, and service condition.
5. Where are Non Return Valves commonly used?
They are used in water treatment, chemicals, utilities, pump discharge lines, and general industrial pipelines.
6. Can Non Return Valves be used for chemicals?
Yes, provided body and trim materials are selected according to actual chemical media and operating condition.
7. What is the difference between Swing Check Valve and Dual Plate Check Valve?
Swing Check uses a hinged disc and is more conventional, while Dual Plate Check is more compact and often preferred where lower weight and shorter face-to-face length are important.
8. Do Non Return Valves require manual operation?
No. They operate automatically according to forward flow and reverse flow conditions.
9. Can a Non Return Valve be installed vertically?
Some designs can be installed vertically, but installation orientation depends on valve type and project conditions. Final selection should consider the actual layout.
10. Why choose MNC Valves Limited for Non Return Valves?
MNC Valves Limited provides application-based support, a complete range of check valve types, and project-oriented guidance for industrial requirements.
11. What is cracking pressure in a Swing Check Valve?
Cracking pressure is the minimum upstream pressure required to open the valve and allow flow through it.
12. Does a Swing Check Valve create pressure drop?
Yes, but it is generally lower compared to many other check valve types due to its relatively open flow passage.
13. Can Swing Check Valves be used in high-pressure systems?
Yes, they can be designed for high-pressure applications depending on material, design, and project specifications.
14. What happens if a Swing Check Valve is installed incorrectly?
Incorrect installation can affect valve performance, leading to improper sealing, vibration, or reverse flow issues.
15. Are Swing Check Valves suitable for dirty or slurry service?
They are generally better suited for clean or moderately clean fluids. Special design considerations may be required for dirty service.
16. What materials are commonly used in Swing Check Valves?
Common materials include WCB, CF8, CF8M, and other application-specific materials depending on service conditions.
17. Do Swing Check Valves require maintenance?
They require minimal maintenance, but periodic inspection is recommended to ensure proper operation.
18. Can Swing Check Valves handle high flow rates?
Yes, they are suitable for high flow conditions where a relatively unrestricted flow path is beneficial.
19. What industries commonly use Swing Check Valves?
Industries include water treatment, power plants, oil & gas, chemical processing, and general industrial applications.
20. How do I select the right size for a Swing Check Valve?
The valve size should match the pipeline size, but final selection should also consider flow rate, pressure conditions, and system design.
