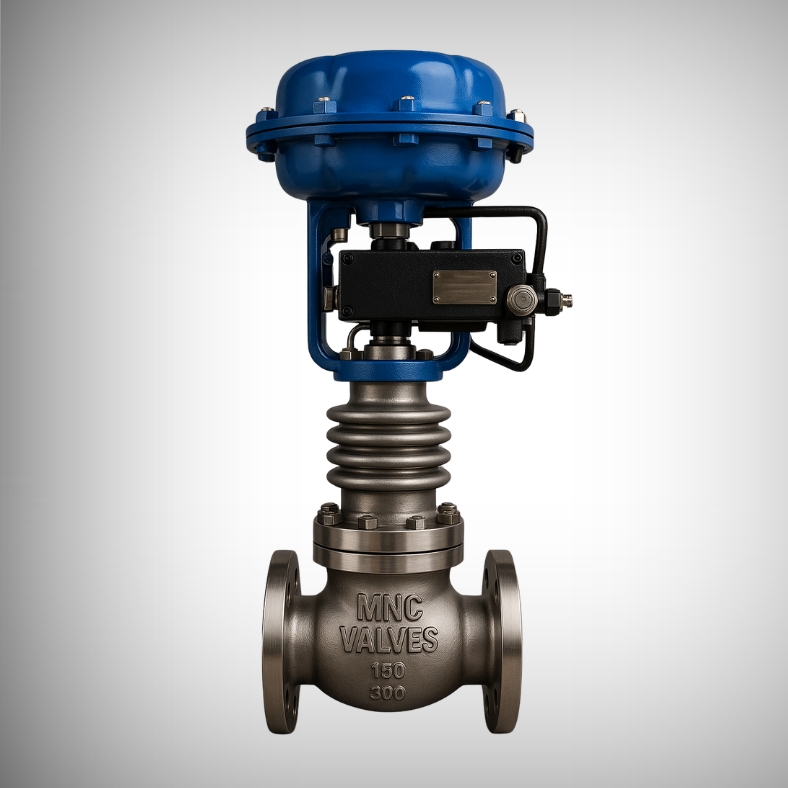

Control Valve
Description
PRODUCT DESCRIPTION
| BODY | CS / SS304 |
|---|---|
| TRIMS | 13 CR/18 CR 8 NI |
| DIAPHRAGM | IMPORTED PLASTIC / RE-INFORCED RUBBER |
| SEAT | SOFT SEATED / METAL TO METAL |
| MFG STD | GENERALLY CONFIRMING TO IS 10189 (PART 1) |
| INSP & TEST STD | FCI 70-2 |
| CLASS | 150# / 300# |
| OPERATION | ELECTRIC / PNEUMATIC DIAPHRAGM PNEUMATIC CYLINDER |
| ENDS | SCREWED / FLANGED |
| WORKING PRESSURE | 10KG/CM2 |
| TEMPERATURE | 0 ℃ TO 180 ℃ / 220 ℃ / 450℃ |
| SIZES RANGE | 25MM TO 100MM |
| MEDIA | AIR, WATER, THERMIC OIL, GAS & CHEMICAL |
Products Range
CTL 7701 MNC Y-Type Control Valve Screwed End
CTL 7702 MNC Y Type Control Valve Flange end
CTL 7703 Pneumatic Diaphragm Type 2 way Control Valve Flange End
CTL 7704 pneumatic-diaphragm-operated-control-valve-3 way flange end
CTL 7705 MNC Cage Guided Globe Control Valve Flange End
CTL 7708 MNC Cylinder Operated Control Valve Flange End
CTL 7709 MNC 3 Way Pneumatic Cylinder Operated Control Valve Flange End
