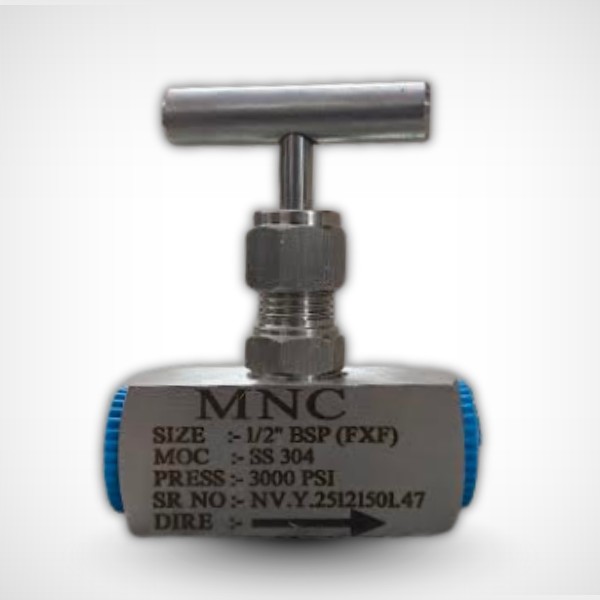

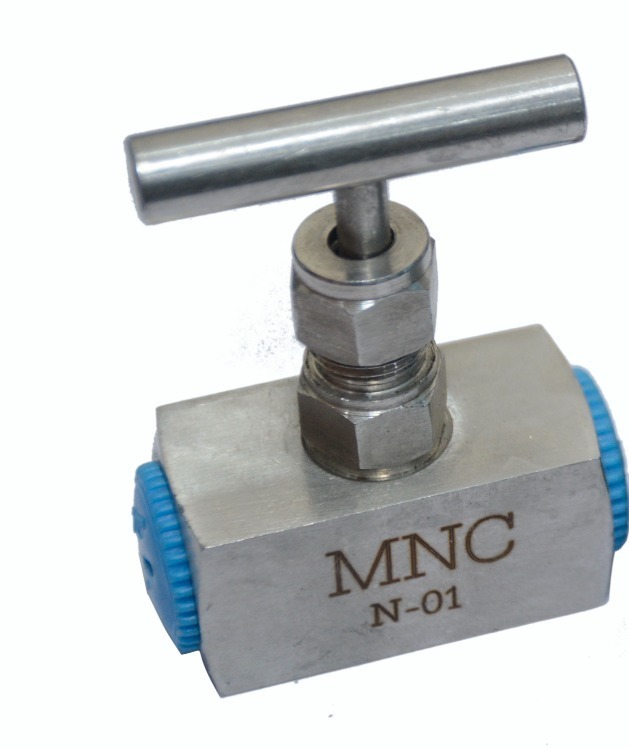

Needle Valve
- Size: 1/2" BSP (F x F)
- Material (MOC): SS 304
- Pressure Rating: 3000 PSI
- Operation: Manual (T-Handle)
- Flow Direction: Uni-directional
✔ Liquid ✔ Oil ✔ Gas ✔ Air ✔ Steam
Description
| Description | Details |
|---|---|
| Valve Type | Needle Valve, Sight Glass |
| Body | AISI 304 / AISI 316 |
| Trims | AISI 304 / AISI 316 |
| MFG,. STD | MNC / 022 |
| TEST STD | MNC / 022 |
| HYD – Test Pressure | BODY : 1125 Psig (79 Kg/Cm²) SEAT : 815 Psig (57 Kg/Cm²) |
| End | SCREWED TO BSP / BSPT / NPT SOCKETWELD TO ASME B 16.11 |
| Size | 8 MM TO 50 MM |
| HAND WHEEL | Durable Bakelite |
| Series No. | OTV 8806 |
| Quantity | Please refer to customer annexure |
