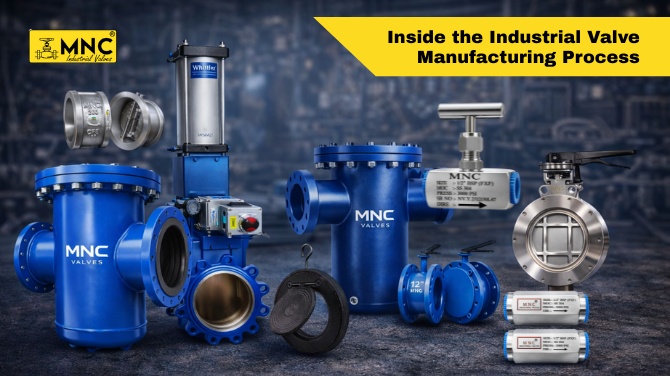

How Industrial Valves Are Manufactured: A Complete Guide by MNC VALVES
In today’s process industries, industrial valves are essential parts. They manage, isolate, and control the flow of liquids, gases, and slurries through intricate systems where efficiency, dependability, and safety are essential. The function of an industrial valve directly affects plant uptime, product quality, and operational safety in everything from power plants and oil refineries to water treatment facilities and pharmaceutical manufacturing lines.
Application Analysis and Requirement Assessment
Long before any metal is cut, the production process starts. The application of the valve must be fully understood. Industrial valves are not one-size-fits-all parts; rather, their design is contingent upon industry specifications and operating conditions.
Key parameters evaluated include:
-
Type of media (liquid, gas, steam, slurry, corrosive or abrasive fluids)
-
Operating pressure and temperature
-
Flow rate and control requirements
-
End connections (flanged, threaded, welded)
-
Industry standards and certifications (API, ASME, ISO, ASTM, DIN, etc.)
-
Environmental and safety considerations
For instance, while valves used in the food and beverage or pharmaceutical sectors must adhere to stringent hygiene and cleanliness regulations, those used in oil and gas and petrochemical applications must endure high pressures and harsh media. The valve is designed for dependability and a long service life thanks to accurate application analysis.
Design Engineering and Technical Validation
The design engineering stage starts when the application requirements are established. Here, manufacturability, safety, and performance are all in harmony.
Modern valve manufacturers use:
-
CAD (Computer-Aided Design) for precise geometry
-
CAE and simulation tools to analyze stress, flow dynamics, and pressure loads
-
Material compatibility studies for corrosion resistance and durability
Crucial elements including body thickness, sealing mechanisms, stem design, actuation interface, and tolerances are finalized by design engineers. At this point, adherence to international codes (API 600, API 6D, ASME B16.34, ISO 5208, etc.) is confirmed.
Design validation is handled as a risk-mitigation phase at MNC Valves, guaranteeing that the valve will function consistently throughout its intended duration.
Raw Material Selection and Inspection
One of the most crucial elements in the production of industrial valves is the choice of materials. The incorrect material may cause corrosion, leaks, early failure, or safety incidents.
Common materials include:
-
Carbon steel
-
Stainless steel (304, 316, duplex, super duplex)
-
Alloy steel
-
Cast iron and ductile iron
-
Special alloys (Monel, Inconel, Hastelloy) for extreme environments
Pressure, temperature, chemical compatibility, and industrial restrictions all influence the choice of material. Every raw material is obtained from authorized vendors and goes through an incoming examination that includes mechanical property tests and chemical composition verification. Material test certificates (MTCs), which are particularly important for EPC projects and government infrastructure, are used to preserve traceability.
Casting or Forging of Valve Components
Depending on the design and use, casting or forging is used to create the valve body, bonnet, and other pressure-containing components.
-
Casting allows complex shapes and internal cavities, commonly used for gate, globe, ball, butterfly, and check valves.
-
Forging offers superior grain structure and strength, ideal for high-pressure and critical service valves.
Melted metal is poured or forged, patterns or dies are made, and parts are left to cool under carefully monitored circumstances. Rough castings or forgings are cleaned, heat-treated if necessary, and examined for flaws such inclusions, cracks, or porosity after solidification.
CNC Machining and Precision Manufacturing
Dimensional accuracy and sealing performance are attained through machining. Tight tolerances and reproducibility are guaranteed by the use of sophisticated CNC machines.
Machining operations include:
-
Boring and facing of valve bodies
-
Precision machining of seats, stems, discs, and balls
-
Threading, drilling, and milling operations
Because even little deviations can result in leakage or operational failure, critical sealing surfaces are machined to exact specifications. Automated inspection tools and skilled machinists collaborate to ensure uniformity, particularly in large-volume OEM or EPC supply contracts.
Component Assembly and Functional Integration
Individual parts are machined and then put together to form a complete valve. Technical know-how and meticulousness are needed for this phase.
Assembly includes:
-
Installation of seats, seals, gaskets, and packing
-
Stem and disc/ball alignment
-
Torque verification
-
Actuator or gearbox mounting (manual, pneumatic, electric, or hydraulic)
For valves used in chemical, food and beverage, and pharmaceutical industries, clean assembly conditions are especially crucial. Long-term sealing performance, dependable shut-off, and seamless operation are all ensured by proper assembly.
Quality Inspection and Testing
Quality inspection and testing are non-negotiable in industrial valve manufacturing. Each valve undergoes rigorous checks to ensure safety and compliance.
Standard inspections include:
-
Dimensional and visual inspection
-
Hydrostatic shell and seat testing
-
Pneumatic testing for gas-tight applications
-
Torque and operational testing
-
Non-destructive testing (NDT) such as radiography, dye penetrant, or ultrasonic testing, when required
Testing is conducted according to international standards like API 598, ISO 5208, or customer-specific specifications. For sectors like infrastructure, power production, and oil and gas, where valve failure can have dire repercussions, this stage is crucial.
Surface Treatment and Coating
Surface treatment enhances corrosion resistance, durability, and service life. Depending on application and environment, valves may undergo:
-
Shot blasting or sand blasting
-
Epoxy, polyurethane, or FBE coating
-
Galvanizing or specialized chemical-resistant coatings
For underground pipelines, marine environments, or wastewater facilities, proper coating is essential to prevent external corrosion and reduce maintenance costs.
Packaging, Documentation, and Final Dispatch
Before dispatch, valves are carefully packaged to prevent damage during transportation. Protective end caps, moisture-resistant wrapping, and robust wooden or steel crates are used based on valve size and destination.
Complete documentation is prepared, including:
-
Test certificates
-
Material traceability records
-
Inspection reports
-
Compliance certificates
Reliable manufacturers like MNC Valves understand that timely delivery, correct documentation, and secure packaging are as important as product quality—especially for EPC contractors and large infrastructure projects.
Why Manufacturing Quality Matters
Industrial valves operate in demanding environments where failure is not an option. High manufacturing quality ensures:
-
Operational safety
-
Energy efficiency
-
Reduced downtime
-
Lower total cost of ownership
-
Long service life with minimal maintenance
Adherence to standards, proper material selection, and comprehensive testing protect not only equipment but also people, processes, and investments.
Conclusion
Industrial valve manufacturing is a complex, multi-stage process that combines engineering expertise, advanced machinery, strict quality control, and deep application knowledge. From design and material selection to testing and dispatch, every step plays a vital role in ensuring reliable performance.
