Ball Valves: Functionality, Types, and Applications

Ball valves are indispensable in modern industrial and domestic systems, offering reliability, versatility, and ease of use. With their quarter-turn operation and ability to handle a variety of fluids and gases, ball valves are a cornerstone of fluid control systems worldwide.

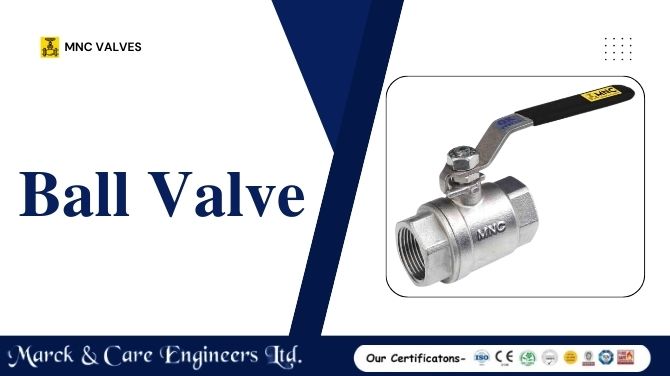

What is a Ball Valve?

A ball valve is a quarter-turn valve that uses a hollow, perforated, and pivoting ball to control the flow of media. Rotating the ball aligns its hole with the pipeline to enable flow or blocks it entirely when turned 90 degrees. Its straightforward design ensures quick operation and effective sealing.

Main Uses of Ball Valves

Ball valves are versatile and are commonly used in the following industries:

• Oil and Gas: To manage pipeline operations and ensure safety.
• Water Treatment: For controlling the flow of water and chemicals in treatment plants.
• Chemical Processing: Handles corrosive and abrasive chemicals efficiently.
• Food and Beverage: Ensures sanitary and precise flow control.
• HVAC Systems: Regulates heating, ventilation, and air conditioning systems.
• Pharmaceuticals: Provides sterile and precise fluid control.

Advantages of Using Ball Valves

Ball valves are favored for their:

• Quick Operation: Open or close with a simple quarter-turn.
• Excellent Sealing: Prevents leaks even in high-pressure environments.
• Durability: Long service life with minimal maintenance.
• Versatility: Can handle various media, including liquids, gases, and slurries.
• Temperature and Pressure Resilience: Suitable for high-pressure and high-temperature applications.

How Does a Ball Valve Work?

A ball valve operates using a ball with a central hole. When the handle or actuator rotates the ball, the hole aligns with the pipeline to allow flow. A 90-degree turn blocks the flow completely, ensuring a secure seal.

Materials Used in Ball Valves

Ball valves are made from various materials to suit different applications:

• Stainless Steel: Resistant to corrosion and high temperatures.
• Carbon Steel: Durable for heavy-duty applications.
• Brass: Common in plumbing due to its anti-corrosive properties.
• PVC and CPVC: Lightweight and resistant to chemicals.
• Alloys: Specialized materials for extreme conditions.

Types of Ball Valves

• Floating Ball Valve: The ball moves slightly to create a seal under pressure.
• Trunnion Ball Valve: The ball is fixed, and spring-loaded seats ensure sealing.
• Full-Port Ball Valve: Provides unrestricted flow as the ball bore matches the pipe diameter.
• Reduced-Port Ball Valve: A smaller bore restricts flow slightly.
• V-Port Ball Valve: Features a V-shaped opening for precise flow control.

Installation and Maintenance of Ball Valves

• Bidirectional Use: Most ball valves allow flow in either direction, but some designs are unidirectional.
• Maintenance Tips:
  • Regularly inspect for leaks and wear.
  • Clean valve seats and ball to remove debris.
  • Lubricate stems and moving parts periodically.
  • Replace seals or gaskets as needed.

Applications and Performance

Ball valves excel in handling a wide range of media, including water, oil, gas, steam, chemicals, and abrasive slurries. With proper material selection, they can withstand high-pressure environments and temperatures up to ~500°C for metal valves.

How to Select the Right Ball Valve

• Media Compatibility: Ensure the valve material is suitable for the fluid or gas.
• Pressure and Temperature: Match the valve’s specifications with your operating conditions.
• Connection Type: Choose from threaded, flanged, or welded connections.
• Size and Flow: Determine if you need full-port or reduced-port valves.
• Automation Needs: Decide between manual or automated valves based on your system requirements.

Certifications to Look For

Ensure the ball valve meets quality and safety standards, such as:

• ISO 9001: For quality management.
• API 6D: Standards for pipeline valves.
• ANSI/ASME: Compliance with mechanical standards.
• CE Marking: For European safety and environmental compliance.

Conclusion

Ball valves are a critical component in fluid control systems across industries. Their robust design, versatility, and ease of operation make them a go-to choice for handling diverse media under varying conditions. Whether you’re selecting a valve for industrial or domestic use, understanding its functionality, materials, and types ensures optimal performance and reliability.
