Industrial Valves Selection Guide
Complete Engineering Guide for Selecting the Right Industrial Valve
Introduction
Industrial valves are critical components used to regulate, isolate, and control the flow of fluids within pipelines and process systems. Proper valve selection is essential for ensuring reliable operation, safety, efficiency, and long service life of industrial systems.
In industries such as oil & gas, chemical processing, water treatment, power generation, pharmaceuticals, and manufacturing, valves perform essential functions including flow isolation, pressure control, and prevention of reverse flow.
Selecting the wrong valve can lead to serious operational problems including leakage, pressure loss, system failure, equipment damage, and safety hazards.
This guide provides engineers, plant operators, and procurement professionals with a comprehensive overview of how to select the correct valve based on application requirements.
Primary Functions of Industrial Valves
Industrial valves perform several important functions in process systems.
Flow Isolation
Some valves are designed to completely stop fluid flow in pipelines.
Flow Regulation
Certain valves allow operators to control flow rate.
Direction Control
Some valves allow flow in only one direction.
Pressure Control
Valves can regulate pressure within pipelines and process equipment.

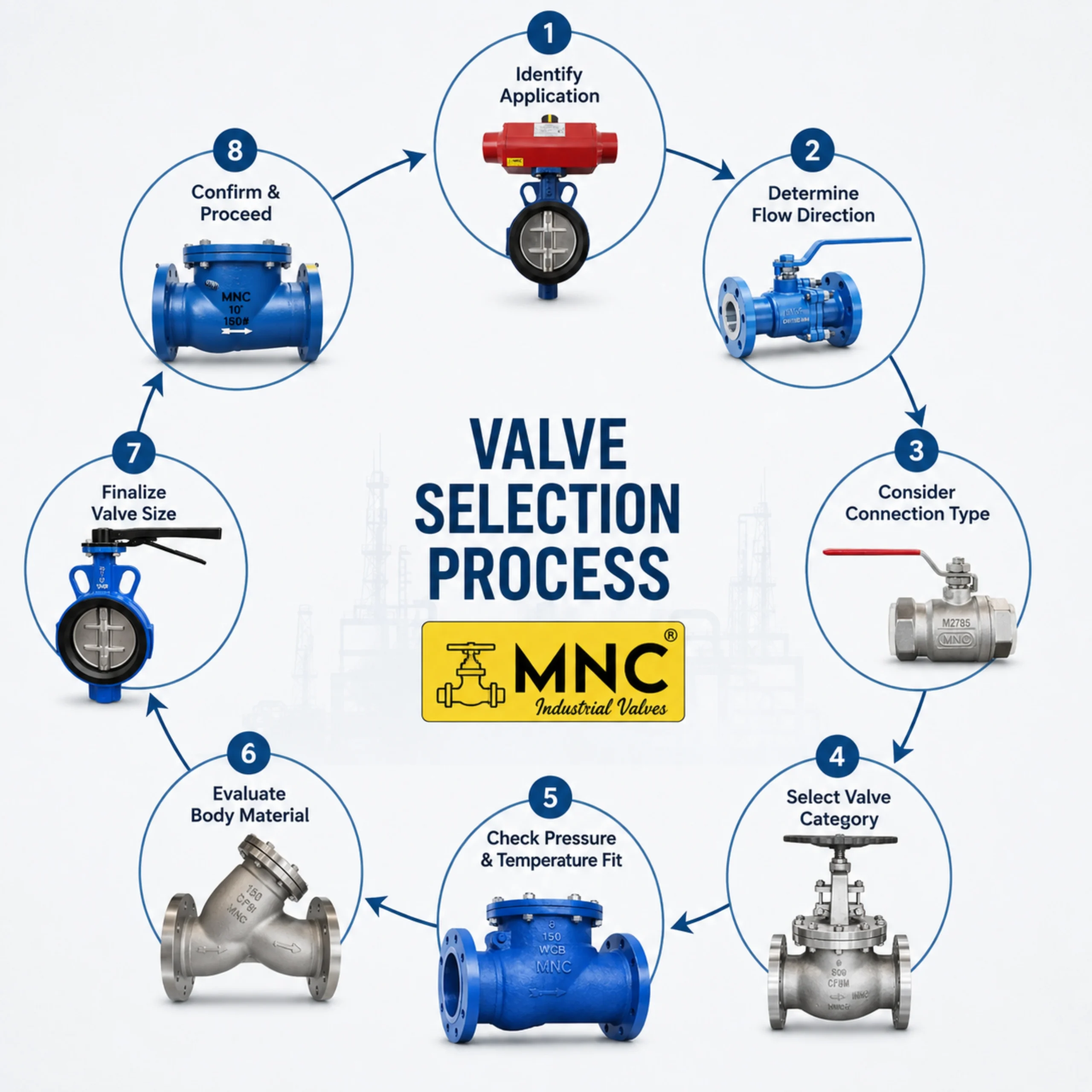

Major Factors in Valve Selection
Selecting the correct valve requires evaluation of several engineering parameters.
1 Fluid Characteristics
Understanding the nature of the fluid being transported is essential.
Key questions include:
Fluid Compatibility Table
| Fluid Type | Recommended Valve Materials |
| Water | Cast Iron, Stainless Steel |
| Steam | Alloy Steel, Stainless Steel |
| Oil | Carbon Steel, Stainless Steel |
| Chemicals | Stainless Steel, Special Alloys |
| Slurry | Hardened Steel, Specialized Valves |
2 Operating Pressure
Industrial valves must withstand system pressure without leakage or structural failure.
Pressure ratings are defined according to industry standards such as:
Typical Pressure Classes
| Pressure Class | Typical Application |
| Class 150 | Low pressure pipelines |
| Class 300 | Medium pressure systems |
| Class 600 | High pressure systems |
| Class 900+ | Critical industrial processes |
Selecting a valve with inadequate pressure rating can lead to catastrophic failure.
3 Operating Temperature
Temperature conditions directly affect valve materials and sealing performance.
Temperature Selection Table
| Temperature Range | Recommended Materials |
| Below 100Β°C | Cast Iron, Bronze |
| 100Β°C β 400Β°C | Carbon Steel |
| 400Β°C β 600Β°C | Alloy Steel |
| Above 600Β°C | Special Alloys |
High temperature environments require specialized valve materials and seals.
4 Flow Control Requirement
Different valves offer different flow control capabilities.
Valve Function Comparison
| Valve Type | Flow Control | Typical Function |
| Ball Valve | Limited control | Quick shut-off |
| Gate Valve | No throttling | Isolation |
| Globe Valve | Excellent control | Flow regulation |
| Butterfly Valve | Moderate control | Large pipeline flow |
| Check Valve | Automatic | Prevent backflow |
Understanding the required flow characteristics is critical for valve selection.
Types of Industrial Valves
Ball Valves
Ball valves use a spherical ball with a central bore to control fluid flow.
When rotated 90 degrees, the ball either allows or blocks fluid passage.
Advantages
Applications
Butterfly Valves
Butterfly valves use a rotating disc positioned within the pipeline.
They are widely used for large diameter pipelines.
Advantages
Applications
Gate Valves
Gate valves use a sliding gate mechanism to open or close the flow path.
They are primarily used for isolation.
Advantages
Applications
Globe Valves
Globe valves are designed for precise flow control.
Their internal design allows accurate throttling.
Applications
Check Valves
Check valves automatically prevent reverse flow in pipelines.
They protect pumps and process equipment.
Applications
Valve Materials Selection
Material selection is one of the most critical aspects of valve design.
Common Materials
| Material | Characteristics | Typical Use |
| Cast Iron | Economical | Water systems |
| Carbon Steel | Strong | Oil & gas |
| Stainless Steel | Corrosion resistant | Chemicals |
| Duplex Steel | High strength | Offshore |
| Alloy Steel | High temperature | Steam systems |
Valve End Connections
End connections determine how valves are installed into pipelines.
Common Connection Types
| Connection Type | Description |
| Flanged | Bolted to pipeline flanges |
| Threaded | Screw connection |
| Welded | Permanent welded joint |
| Socket Weld | Small high pressure pipelines |
Valve Automation Considerations
Modern industrial plants increasingly rely on automated valves.
Automation allows valves to be operated remotely through control systems.
Types of Actuators
| Actuator Type | Power Source |
| Pneumatic | Compressed air |
| Electric | Electric motor |
| Hydraulic | Hydraulic pressure |
Automation improves efficiency, safety, and operational control.
Valve Selection Flowchart
The following simplified engineering flowchart helps determine the correct valve type.
Start
β
Determine Fluid Type
β
Check Pressure & Temperature
β
Is precise flow control required?
β
Yes β Globe Valve
No
β
Is quick shut-off required?
β
Yes β Ball Valve
No
β
Is pipeline large diameter?
β
Yes β Butterfly Valve
No
β
Is isolation required?
β
Yes β Gate Valve
No
β
Is reverse flow prevention needed?
β
Yes β Check Valve
End
This flowchart helps engineers quickly identify the appropriate valve category for most industrial applications.
Maintenance Considerations
Regular maintenance ensures reliable valve operation.
Recommended Maintenance Activities
Preventive maintenance reduces system downtime and increases valve service life.
Safety Considerations
Safety is critical in industrial valve applications.
Important safety factors include:
Valves must meet relevant industry standards such as API, ASME, and ISO.
Conclusion
Selecting the correct industrial valve requires careful evaluation of fluid properties, pressure and temperature conditions, flow control requirements, and material compatibility.
By understanding the different types of valves and their operating characteristics, engineers can ensure reliable and efficient operation of industrial systems.
MNC Valves provides high-quality industrial valve solutions designed to meet the demanding requirements of modern industrial applications.
