MNC Valves Ltd.
25+ Years Experience in industrial valve manufacturing and supply
Size range available from 15 mm to 600 mm
Suitable for oil & gas, chemical, water, power, pharma, and industrial duty
Manufacturing, testing, and dispatch-oriented execution approach

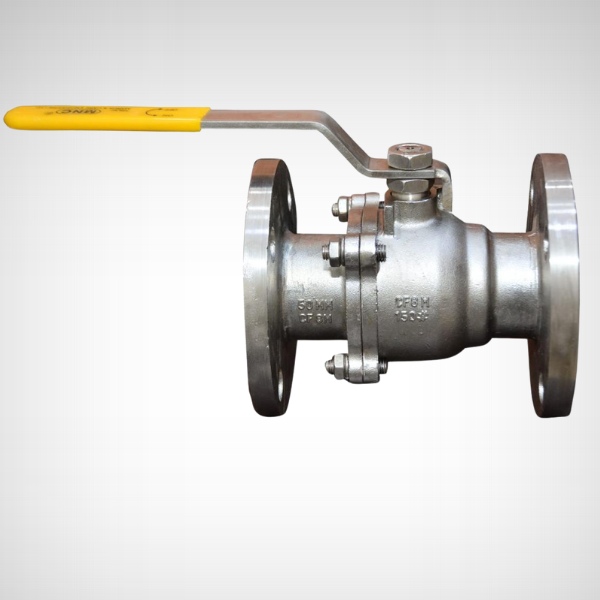

MNC Valves LimitedΒ is a trusted manufacturer and supplier of 2 Piece Flanged End Ball Valves engineered for secure shut-off, efficient quarter-turn operation, and long-term industrial service. These valves are widely selected in pipelines where tight sealing, durable body construction, and flanged end connectivity are critical.
Our 2 piece flanged ball valves are suitable for liquid, gas, chemical, utility, and process applications where pressure integrity, reliable isolation, and maintainable industrial design are required. The flanged construction makes them especially suitable for stronger and safer installation in fixed industrial pipeline systems.
AΒ 2 Piece Flanged End Ball ValveΒ is a quarter-turn industrial valve with a two-piece body construction and flanged end connections. It uses a precision ball with a central bore to allow or stop the flow of media. When the ball rotates 90 degrees, the flow passage opens or closes completely.
This design is commonly selected where the buyer needs strong pipeline connection, dependable shut-off, easier industrial handling, and service-ready isolation performance. It is ideal for applications where screwed-end valves are not sufficient and a stronger flange-mounted solution is preferred.
Provides robust valve assembly and industrial-grade body strength for flanged pipeline service.
Ensures reliable shut-off by allowing the ball to sit tightly under line pressure.
Enhances safety and operational reliability in pressurized service conditions.
Advanced compact multi-port valve for directional switching and routing in smaller threaded-end systems.
Available with pneumatic and electric actuators for automated shut-off, remote operation, and plant process control.
Specification
15 mm to 600 mm
150#, 300#, 600#
Flanged End
API 608 / ASME B16.34
ASME B16.10
ASME B16.5
Flanged / Screwed / Butt Weld
API 598
Lever / Gear / Pneumatic / Electric
WCB / CF8 / CF8M
PTFE / RPTFE / Metal Seat
Available in Class 150, 300, and 600 depending on size, material, and design requirement. Proper pressure class selection is essential for safe industrial operation.
Temperature capability depends on seat material and service condition. PTFE and RPTFE are suitable for many industrial applications, while metal seats are selected for higher temperature duty.
Provides secure and leak-resistant installation in industrial pipeline systems.
Floating ball design supports dependable isolation and strong sealing performance.
Built for demanding service conditions with suitable body and seat material options.
Suitable for shut-off duty, hydrocarbon service, and industrial utility lines.
Selected for chemical and process media lines when proper body and seat materials are used.
Used in treatment plants, utility lines, and industrial water service applications.
Suitable for industrial utility and process isolation duty in plant systems.
Used where reliable shut-off and material compatibility are important.
Widely used in process, gas, liquid, and utility applications requiring dependable isolation.
Maintenance
Moderate
Easier inline maintenance
Cost
Higher
Lower
Body Strength
High
Good
Typical Use
General industrial and fixed flange service
Applications requiring easier servicing
Industrial understanding built through long market and application exposure.
Suitable recommendations for materials, designs, port geometry, and operation modes based on real service conditions.
Structured production and testing approach for dependable industrial performance.
Connect withΒ MNC VALVES LIMITEDΒ for technical support, product selection guidance, and quotation for your industrial requirement.
Technical support for selection
Quotation support for project needs
Application-focused product guidance
Business-ready follow-up action
It is a quarter-turn industrial valve with two body parts and flanged ends, used for dependable shut-off and isolation duty.
The available size range is 15 mm to 600 mm.
These valves are available in 150#, 300#, and 600# pressure classes.
Flanged ends provide stronger, more secure, and leak-resistant pipeline connections compared to simpler end connections.
A floating ball design allows the ball to move slightly under pressure, improving sealing performance against the seat.
WCB, CF8, and CF8M are commonly used depending on pressure, temperature, and media condition.
PTFE, RPTFE, and metal seats are used depending on service requirement.
Yes, with suitable stainless steel body and compatible seat material selection.
Yes, depending on size, body material, and pressure class selection.
It is generally not recommended for continuous throttling. It is best suited for shut-off and isolation duty.
Typical standards include API 608 and ASME B16.34, depending on application requirement.
Testing is carried out as per API 598.
Ball valves are excellent for quick shut-off, but in some very large or specific full-flow isolation duties, gate valves may be preferred depending on line condition and project requirement.
Oil & gas, chemical, water treatment, power, pharmaceutical, and general industrial sectors commonly use it.
2 piece valves are strong and cost-effective for fixed service, while 3 piece valves are more service-friendly for maintenance-intensive applications.
Depending on design and requirement, full bore or reduced bore options may be offered.
Yes, when proper seat and material combinations such as metal seat are selected for the temperature condition.
Valve size, pressure, media condition, seat material, and internal friction all affect torque requirement.
Periodic inspection of seats, ball surface, stem sealing, and operating smoothness is recommended.
Because MNC VALVES LIMITED offers application-based selection, reliable manufacturing quality, industrial experience, and strong technical support.
