MNC Valves Ltd.

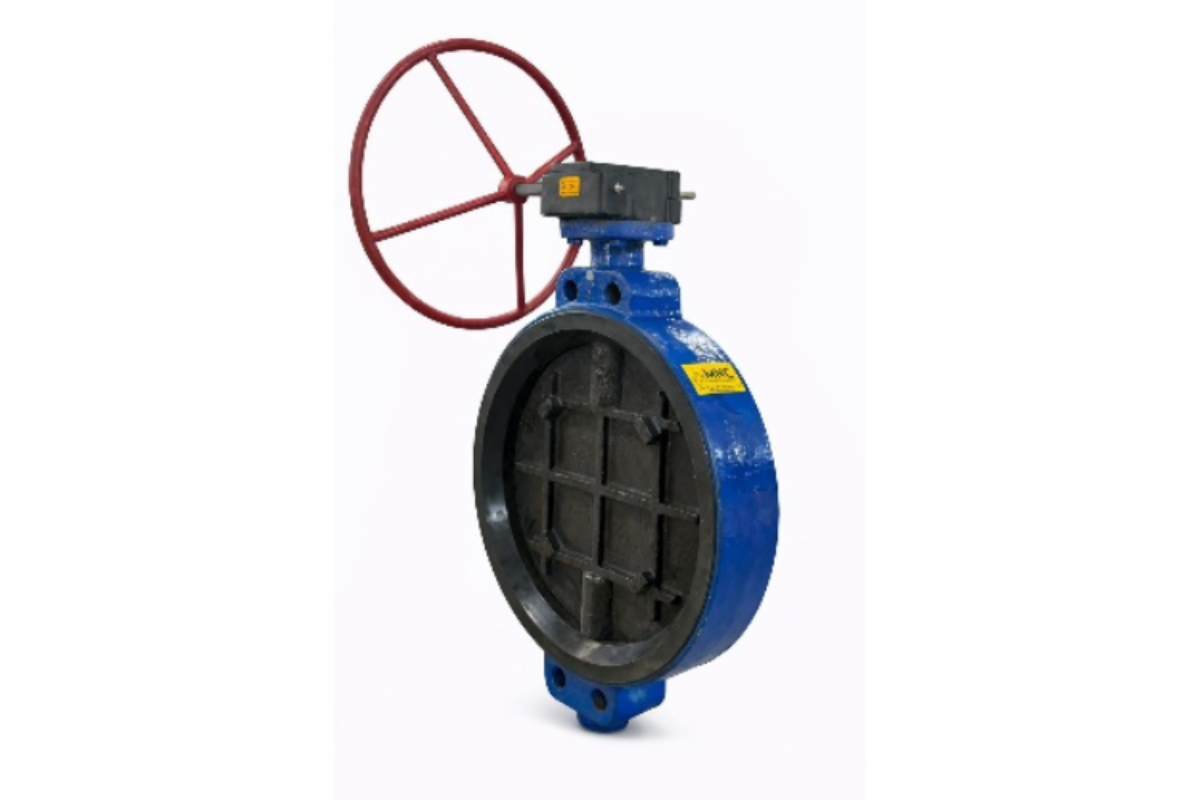

Industrial Butterfly Valves
Manufacturer – MNC Valves
Limited
MNC Valves Limited manufactures high-performance butterfly valves engineered for compact installation, low torque operation, reliable shut-off, and long service life across water, chemical, textile, HVAC, utility, power, and industrial process systems.
25+ Years Industrial Valve Manufacturing Experience
Wafer, Lug, Double Flanged, Concentric, Double Offset, Damper & Actuated Range
Suitable for water, utility, chemical, ETP, HVAC, power, and general process service
Application-based selection support with quality-focused manufacturing approach
Get a Quote
Download Catalogue
- MNC Valves Limited
- Butterfly Valve
Introduction
MNC Valves Limited is a trusted manufacturer and supplier of industrial butterfly valves designed for flow isolation, shut-off, and controlled operation in industrial piping systems. Butterfly valves are widely preferred because of their compact design, low weight, low torque requirement, and suitability for medium to large diameter pipelines.
Our butterfly valves are selected across water treatment plants, chemical handling lines, textile processing systems, HVAC circuits, utility systems, power plant service lines, and general industrial pipelines. Each valve is selected based on pressure rating, body material, seat compatibility, operating temperature, fluid characteristics, and required mode of operation.
What is a Butterfly Valve?
A butterfly valve is a quarter-turn rotational motion valve used for isolating, regulating, or controlling flow in a pipeline. It consists of a circular disc mounted on a shaft. When the disc rotates parallel to flow, the valve opens; when it rotates perpendicular to flow, the passage closes.
This valve category is commonly selected where the buyer needs a compact, lightweight, and economical valve with quick operation and dependable service for water, gas, air, chemicals, and industrial process media. Butterfly valves are especially effective in larger diameter lines where compactness and installation convenience are important.
Butterfly Valve Types & Family Categories
This page serves as the main butterfly valve family hub. Explore the core product categories below based on mounting style, design type, application type, and operation type.
Wafer Type Butterfly Valve
Compact and economical solution installed between flanges, suitable for water, utility, HVAC, and general industrial service where space efficiency and simplicity are important.
- Compact installation
- Cost-effective solution
- Widely used in utility lines
Lug Type Butterfly Valve
Lug type valves provide threaded insert mounting and allow end-of-line service with better maintenance flexibility and stronger installation control
- End-of-line service capability
- Better maintenance access
- Suitable for industrial systems
Double Flanged Butterfly Valve
Built for stronger pipeline integration and robust installation where line stability, larger sizes, and pressure integrity are important.
- Robust flange mounting
- Suitable for larger pipelines
- Better alignment support
Concentric Butterfly Valve
Strong flanged-end construction suitable for general industrial shut-off and reliable process isolation duty.
- Resilient seated design
- Suitable for utility and water
- Economical performance
Double Offset Butterfly Valve
Preferred where inline maintenance, easier servicing, and flanged-end industrial installation are required.
- Reduced seat wear
- Higher performance geometry
- Suitable for demanding duty
Damper Butterfly Valve
Compact threaded-end solution designed for easier servicing in smaller process and utility lines.
- Air and gas handling duty
- Suitable for ducts and exhaust
- Industrial airflow control
Actuated Butterfly Valve
Available with pneumatic or electric actuators for process automation, remote control, shutdown systems, and repeated operating cycles.
- Pneumatic or electric actuation
- Suitable for automated duty
- Remote operation support
Technical Specifications
Parameter
Specification
Size Range
DN 40 to DN 1500
Pressure Rating
PN10 / PN16 / PN25 / PN40
Body Material
CI / DI / WCB / CF8 / CF8M
Disc Material
SG Iron / SS304 / SS316
Seat / Sealing
EPDM / NBR / PTFE / Metal
Shaft Material
SS410 / SS304
End Connection
Wafer / Lug / Double Flanged
Operation
Lever / Gear / Pneumatic / Electric
Temperature Range
-25°C to 400°C depending on seat and design
Design Standard
API / BS / EN
Testing Standard
API 598
Material Selection Guide
Body & Construction Material
- CI / DI – suitable for water distribution, utility, and general low to medium pressure service
- WCB – suitable for stronger industrial service conditions and more demanding process applications
- CF8 (SS304) – suitable where corrosion resistance and stainless steel construction are required
- CF8M (SS316) – preferred for more aggressive chemical and corrosive media conditions
Seat / Seal / Internal Material Selection
- EPDM – ideal for water, utility, and neutral fluid service
- NBR – suitable for oil-related service and selected hydrocarbon applications
- PTFE – suitable for chemical handling and corrosive media compatibility
- Metal Seat – selected for higher temperature service and more demanding shut-off conditions
Butterfly Valve Selection Guide
Selecting the correct butterfly valve depends on mounting style, seat material, process conditions, operating pressure, and required mode of operation.
Requirement
Recommended Butterfly Valve Type
Compact and economical installation
Wafer Type Butterfly Valve
End-of-line service and maintenance flexibility
Lug Type Butterfly Valve
Stronger mounting and larger line support
Double Flanged Butterfly Valve
Water, utility, and standard resilient seated service
Concentric Butterfly Valve
Higher pressure, lower seat wear, and improved sealing performance
Double Offset Butterfly Valve
Air and gas flow systems
Damper Butterfly Valve
Automation and remote operation
Actuated Butterfly Valve
Engineering Considerations
Selecting the correct butterfly valve depends on mounting style, seat material, process conditions, operating pressure, and required mode of operation.
Selection Logic
- Operating pressure and line size should match the valve pressure rating and body design.
- Seat material must be selected based on temperature, fluid composition, and shut-off requirement.
- Wafer, lug, or double flanged design should be selected according to pipeline layout and maintenance preference.
- Operation type should be chosen based on valve size, cycle frequency, available torque, and automation need.
Practical Engineering Notes
- Butterfly valves are highly suitable for larger diameter pipelines where compactness and low weight are important.
- Incorrect seat selection may cause leakage, premature wear, or difficulty in operation.
- Actuator torque must consider differential pressure, seat friction, and safety factor for dependable automation.
- Double offset designs are preferred where reduced seat wear and better sealing reliability are required.
Applications
HVAC Systems
Widely used in chilled water lines, air handling circuits, and building utility systems because of compact design and low torque.
Chemical Industry
Selected for process lines, dosing sections, and corrosive media service when supported by proper body and seat material selection.
Water Treatment
Suitable for filtration skids, RO plants, utility water lines, ETPs, STPs, and large diameter water handling systems.
Textile & ETP
Used in chemical dosing, treatment systems, recycling lines, and process utility applications in textile plants.
Power Plants
Suitable for cooling systems, utility pipelines, and plant support services where reliable shut-off and easy operation are important.
General Industrial Service
Used in process lines, utility connections, plant support systems, and general fluid handling installations across industries.
Butterfly Valve Selection Guide
Parameter
Butterfly Valve
Ball Valve
Main Use
Compact isolation and throttling support
Tight shut-off and quarter-turn isolation
Size Advantage
Better for medium and large sizes
Heavier and costlier in larger sizes
Cost Level
Economical, especially in larger diameters
Moderate to high depending on design
Weight
Lightweight and compact
Heavier construction
Shut-Off Strength
Good and application-dependent
Best for straight-through isolation duty
Pipeline Space Requirement
Lower
Higher
Failure Causes & Maintenance Guide
Common Failure Reasons
- Seat wear due to incorrect material selection for temperature or chemical service
- Leakage caused by disc damage, improper installation, or shaft misalignment
- High operating torque due to build-up, wrong actuator sizing, or damaged seating surface
- Poor performance resulting from pressure or service conditions beyond design limits
Maintenance Recommendations
- Inspect seat, disc, and shaft condition during periodic shutdown or line maintenance
- Operate the valve within the designed pressure and temperature range
- Ensure actuator torque or manual operation force is correctly aligned with valve size and duty
- Use compatible materials for corrosive, abrasive, or temperature-sensitive service conditions
Manufacturing & Quality at MNC Valves Limited
Manufacturing Strength
MNC Valves Limited follows a manufacturing-oriented approach focused on dimensional control, product reliability, assembly discipline, and industrial usability.
- Manufacturing support for multiple industrial valve categories
- Application-aligned execution approach
- Structured supply support for industrial buyers and projects
- Focus on product consistency and dependable field performance
Quality & Testing Focus
Quality is treated as a performance commitment, not a formality. Inspection and testing support service reliability before dispatch.
- Testing-oriented quality process aligned with relevant standards
- Inspection support for sealing, fitment, and reliability
- Emphasis on functional performance and operating dependability
- Suitable confidence for industrial buyers, EPC teams, and consultants
Why Choose MNC Valves Limited
25+ Years of Engineering Experience
Industrial understanding built through long market and application exposure.
Application-Based Support
Suitable recommendations for materials, designs, port geometry, and operation modes based on real service conditions.
Manufacturing & Quality Focus
Real process capability backed by structured execution and testing discipline for dependable industrial use.
Looking for the Right Ball Valve?
Connect with MNC Valves Limited for technical guidance, product selection support, and commercial quotations for your industrial requirement.
Get Instant Quote
Talk to Expert
Technical support for selection
Quotation support for project needs
Application-focused product guidance
Business-ready follow-up action
MNC Valve Limited Popular Products
Ball Valve
Butterfly Valve
Gate Valve
Globe Valve
Strainers Valve
Non Return Valve
Control Valve
Other Valve
Ball Valve
2 Piece Flanged End Ball Valve
3 Piece Flanged End Ball Valve
3 Piece Screwed Ball Valve
3 Way Flanged End Ball Valve
3 Way Screwed Ball Valve
4 Way Screwed Ball Valve
4 Way Flanged Ball Valve
Single Piece Screwed Ball Valve
Trunnion Mounted Ball Valve
Butterfly Valve & Gate Valve
Damper Butterfly Valve
Double Flanged Butterfly Valve
Double Offset Butterfly Valve
Lug Type Butterfly Valve
High Performance Spherical Disc Butterfly Valve
Wafer Type Butterfly Valve
Knife Edge Gate Valve
Strainers Valve
Basket Strainer
Duplex Strainer
Pot Type Strainer
T Type Strainer
Y Type Strainer
Non Return Valve
Disc Check Valve
Dual Plate Check Valve
Swing Check Valve
Control Valve
Diaphragm Control Valve
Motorized Control Valve
Pneumatic Control Valve
Three Way Control Valve
Two Way Control Valve
Other Valve
Flush Bottom Ball Valve
Reactor Bottom Valve
Technical FAQs
1. What is the main advantage of a butterfly valve in large pipelines?
The main advantage is compact, lightweight construction with low torque requirement, making butterfly valves economical and convenient for medium and large diameter lines.
2. How do I choose between wafer and lug type butterfly valves?
Wafer type is generally selected for economical installation between flanges, while lug type is preferred when end-of-line service, easier removal, or better maintenance flexibility is required.
3. When should a double flanged butterfly valve be preferred?
Double flanged butterfly valves are preferred where robust connection strength, better alignment, and stronger installation support are important in larger or heavier duty lines.
4. What is the practical advantage of a double offset butterfly valve?
Double offset design reduces seat friction during opening and closing, which improves service life, lowers wear, and supports better sealing in more demanding conditions.
5. What is a concentric butterfly valve?
A concentric butterfly valve is a resilient seated design where the shaft is centered in the disc and body. It is commonly used in water, utility, and general industrial service.
6. How does seat material affect butterfly valve performance?
Seat material directly affects sealing performance, temperature capability, chemical compatibility, and operating torque. Incorrect seat selection may lead to leakage or early wear.
7. Is EPDM seat suitable for chemical service?
EPDM is commonly suitable for water and neutral fluids. For more aggressive chemical service, PTFE or another compatible seat material is often more suitable.
8. Can butterfly valves be used for throttling service?
Yes, butterfly valves can be used for throttling in many applications, but the suitability depends on pressure drop, flow characteristics, valve design, and service conditions.
9. Why is torque calculation important for actuated butterfly valves?
Actuator torque must be sufficient to overcome seat friction, differential pressure, and operating resistance. Incorrect torque selection can lead to incomplete operation or actuator failure.
10. What causes high operating torque in butterfly valves?
Common reasons include incorrect seat selection, pressure differential, disc-seat interference, build-up on internal surfaces, or inadequate actuator sizing.
11. Are butterfly valves suitable for high temperature service?
Yes, but only when selected with suitable body design and sealing arrangement such as metal seats or compatible high-temperature materials.
12. Which body material is better for water service?
CI and DI are commonly used for water service, while stainless steel or WCB may be selected depending on corrosion, pressure, and application requirements.
13. What is the difference between resilient seated and metal seated butterfly valves?
Resilient seated valves provide soft sealing and are commonly used in utility or standard industrial service, while metal seated valves are chosen for higher temperature and more demanding conditions.
14. Can butterfly valves be used in chemical dosing systems?
Yes, provided the body, disc, and seat materials are selected for the chemical composition, concentration, and operating temperature.
15. What is the practical limitation of butterfly valves compared with ball valves?
Butterfly valves are highly efficient and economical, especially in larger sizes, but ball valves may provide tighter shut-off in certain isolation-focused applications.
16. How does differential pressure affect butterfly valve selection?
Higher differential pressure increases torque requirement and may influence the choice of valve type, seat design, body construction, and actuator size.
17. Why is shaft material important in butterfly valves?
The shaft must withstand operating torque, corrosion exposure, and repeated cycling. Inadequate shaft material can reduce reliability and service life.
18. What maintenance checks are most important for butterfly valves?
Seat condition, disc wear, shaft alignment, leakage signs, actuator performance, and overall operating smoothness should be checked periodically.
19. Can butterfly valves be used in HVAC chilled water systems?
Yes, butterfly valves are widely used in HVAC chilled water and utility systems because of their compact size, easy operation, and economical installation.
20. How do I decide whether to use manual, pneumatic, or electric operation?
Manual operation is suitable for simple applications, pneumatic actuation is preferred for fast automation, and electric actuation is selected where controlled remote operation is needed.
