MNC Valves Ltd.

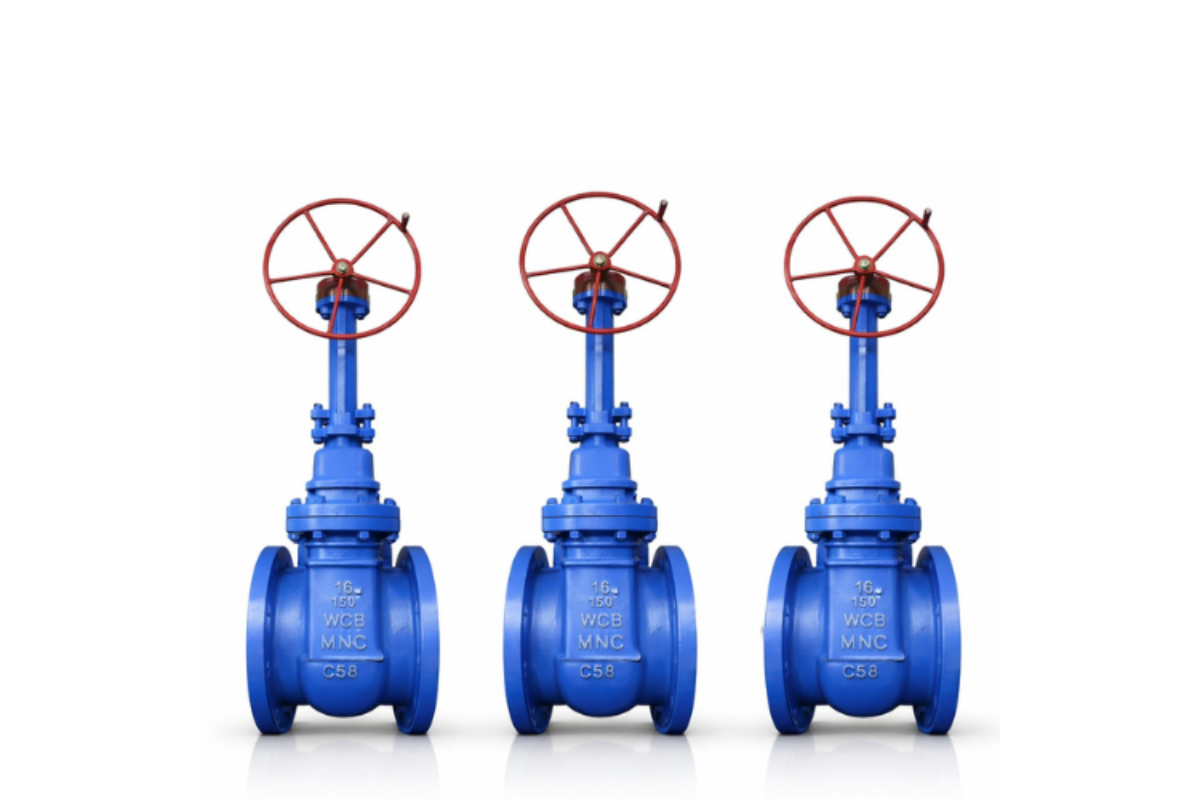

Industrial Gate Valve Manufacturer in India
MNC Valves Limited manufactures industrial gate valves engineered for reliable shut-off, full bore flow, minimal pressure drop, and long service life across oil & gas, petrochemical, power, water treatment, infrastructure, and industrial process applications.
Full bore isolation with minimal pressure drop
API 600, API 602, and API 6D aligned product range
Cast steel, forged steel, pipeline, and knife gate options
Suitable for high pressure, high temperature, and process isolation duty
Get a Quote
Download Catalogue
- MNC Valves Limited
- Gate Valve
What is a Gate Valve?
A gate valve is a linear motion isolation valve designed to stop or allow the flow of fluid in a pipeline. It operates by lifting or lowering a wedge, gate, or parallel disc inside the valve body. When fully open, the flow path is substantially straight, resulting in very low pressure drop. When fully closed, the valve provides dependable shut-off for isolation duty.
Gate valves are widely used where the process requires full-flow passage, low resistance, and reliable open-close operation. They are primarily intended for isolation duty and are generally not recommended for throttling or regulating service, because partial opening can lead to seat damage, vibration, and erosion in many applications.
Why Gate Valves Are Used in Industrial Systems
Flow Efficiency
- Full bore opening supports very low pressure drop
- Straight-through flow path improves hydraulic efficiency
- Suitable where unrestricted flow is required
Isolation Reliability
- Used for dependable on-off service in pipelines
- Suitable for high pressure and high temperature duty depending on design
- Commonly selected in critical process isolation applications
Gate Valve Types & Family Categories
This page serves as the main gate valve family hub. Explore the key categories below based on construction, service duty, and application type.
Cast Steel Gate Valve
Designed mainly as per API 600 for general industrial service, oil & gas, petrochemical, utility, and power plant applications where strong body construction and reliable shut-off are required.
- General industrial and process duty
- Suitable for Class 150 / 300 / 600 and above
- Commonly available in WCB, WC6, WC9, CF8, CF8M
Forged Steel Gate Valve
Manufactured mainly as per API 602 for compact, high-pressure, and high-temperature applications where forged body construction and stronger pressure handling are required.
- Compact high-pressure design
- Socket weld, threaded, or butt weld ends
- Used in refinery and process plants
API 6D Pipeline Gate Valve
Designed for pipeline service with full bore performance and tight isolation in oil, gas, and transmission line systems where pipeline-specific sealing and performance are important.
- Pipeline isolation duty
- Full bore flow path
- Suitable for transmission applications
Knife Edge Gate Valve
Special application gate valve used for slurry, viscous media, fibrous material, pulp, wastewater, and solid-laden service where standard wedge gate valves are not suitable.
- Slurry and wastewater service
- Suitable for difficult media
- Application-based special design
Rising Stem Gate Valve
In this design the stem rises visibly when the valve opens, giving clear indication of valve position. It is widely used where visual operating status and easier maintenance are preferred.
- Visible valve position
- Preferred in accessible plant areas
- Common in industrial installations
Non-Rising Stem Gate Valve
Compact design in which the stem does not rise outside the valve body. It is useful where installation height is limited or where underground or confined-space use is required.
- Compact vertical space requirement
- Useful in confined installation areas
- Selected for specific service conditions
Design & Construction Features
Full Bore Flow Path
Gate valves are designed to provide a substantially unobstructed flow passage when fully open, resulting in very low pressure drop and efficient line flow.
Wedge / Gate Design
Depending on the application, valves may use solid wedge, flexible wedge, split wedge, or parallel slide designs to match service requirements.
Stem Arrangement
Gate valves are available in rising stem and non-rising stem configurations depending on operating visibility, maintenance accessibility, and installation constraints.
Bonnet Construction Options
- Bolted bonnet
- Welded bonnet
- Pressure seal bonnet
- Construction selected according to pressure and service conditions
Trim & Seat Considerations
- Stellite hard facing for higher durability
- Alloy steel or stainless trim options
- Metal-to-metal seating for high temperature and pressure service
- Trim selection should match media, temperature, and cycle conditions
Technical Specifications
Parameter
Specification
Valve Type
Industrial Gate Valve
Size Range
DN 15 to DN 600
Pressure Class
Class 150 / 300 / 600 / 900 / 1500 depending on design
Body Material
WCB / LCB / WC6 / WC9 / CF8 / CF8M / forged steel grades
Trim / Internals
CS / SS / Stellite hard faced / alloy options as requiredPTFE / RPTFE / PEEK / Metal Seat
Seat Arrangement
Metal to metal / hard faced seat arrangement
End Connection
Flanged / Butt Weld / Socket Weld / Threaded depending on type
Operation
Handwheel / Gear / Electric Actuator
Design Standard
API 600 / API 602 / API 6D / ASME B16.34 as applicable
Testing Standard
API 598 / EN 12266 as applicable
Material of Construction
Body Material Selection
- WCB – general industrial and hydrocarbon service
- LCB – low temperature applications
- WC6 / WC9 – higher temperature service
- CF8 / CF8M – corrosion resistant process applications
- Forged Steel Grades – compact high-pressure service
Trim & Seat Material Selection
- Stellite hard facing for enhanced wear resistance
- Stainless steel trim for corrosion resistance
- Alloy steel internals for high-pressure service
- Material selection should be aligned with pressure-temperature and media conditions
Pressure, Temperature & Service Considerations
Pressure Considerations
- Valve class should match line pressure and surge conditions
- High-pressure service may require forged construction or pressure seal bonnet designs
- Pipeline duty may require full bore and bi-directional sealing performance
Temperature Considerations
- Body and trim selection should match actual operating temperature
- Higher temperature duty may require WC6, WC9, or alloy trim
- Thermal expansion and seat load behaviour must be considered in critical applications
Applications
Oil & Gas
Used for isolation in upstream, midstream, downstream, refinery, and hydrocarbon service lines where dependable shut-off is important.
Petrochemical Plants
Suitable for process isolation in demanding chemical and hydrocarbon handling systems.
Power Plants
Used in steam, condensate, utility, and support systems where high pressure and temperature service may be present.
Water Treatment
Used in transmission, utility, and treatment pipelines where full flow and reliable isolation are required.
Steel & Cement
Selected in heavy industrial service where robust isolation valves are required.
Infrastructure & Industrial Utilities
Used in plant, municipal, and industrial pipeline systems for dependable open-close operation.
Gate Valve Comparison Guide
Parameter
Gate Valve
Globe Valve
Ball Valve
Main Function
Isolation
Throttling + Isolation
Quarter-turn tight shut-off
Pressure Drop
Very low when fully open
Higher
Low
Flow Path
Straight-through
Angular / directional
Ported flow path
Best Use
Full flow isolation
Flow regulation
Fast shut-off
Operation Speed
Slower
Moderate
Fast
Engineering Considerations
Selection Logic
- Select gate valve where full flow isolation is required
- Choose cast or forged construction according to size, pressure, and service severity
- Choose stem type according to installation visibility and space requirement
- Choose bonnet and trim according to pressure-temperature duty and media compatibility
Practical Notes
- Gate valves are best used fully open or fully closed
- They are generally not suitable for throttling duty
- Proper installation direction, accessibility, and maintenance planning are important
- Actuated operation may be preferred in larger sizes or remote installations
Looking for Reliable Gate Valve Manufacturer?
Contact MNC Valves Limited for technical support, valve selection guidance, and commercial quotation for your industrial, pipeline, or project requirement.
Â
Get Instant Quote
Talk to Expert
Project quotation support
Technical selection guidance
Industrial application support
Business-ready follow-up
MNC Valve Limited Popular Products
Ball Valve
Butterfly Valve
Gate Valve
Globe Valve
Strainers Valve
Non Return Valve
Control Valve
Other Valve
Ball Valve
2 Piece Flanged End Ball Valve
3 Piece Flanged End Ball Valve
3 Piece Screwed Ball Valve
3 Way Flanged End Ball Valve
3 Way Screwed Ball Valve
4 Way Screwed Ball Valve
4 Way Flanged Ball Valve
Single Piece Screwed Ball Valve
Trunnion Mounted Ball Valve
Butterfly Valve & Gate Valve
Damper Butterfly Valve
Double Flanged Butterfly Valve
Double Offset Butterfly Valve
Lug Type Butterfly Valve
High Performance Spherical Disc Butterfly Valve
Wafer Type Butterfly Valve
Knife Edge Gate Valve
Strainers Valve
Basket Strainer
Duplex Strainer
Pot Type Strainer
T Type Strainer
Y Type Strainer
Non Return Valve
Disc Check Valve
Dual Plate Check Valve
Swing Check Valve
Control Valve
Diaphragm Control Valve
Motorized Control Valve
Pneumatic Control Valve
Three Way Control Valve
Two Way Control Valve
Other Valve
Flush Bottom Ball Valve
Reactor Bottom Valve
Frequently Asked Questions
1. What is gate valve used for?
Gate valves are used for isolation in pipelines where full flow and reliable shut-off are required.
2. Why is gate valve not recommended for throttling?
Because partial opening can damage the seat, create vibration, and cause erosion in many applications.
3. What is full bore gate valve?
It is a gate valve that allows a substantially unobstructed flow path with very low pressure drop when fully open.
4. Which industries use gate valves?
Oil & gas, petrochemical, power, water treatment, infrastructure, and general industrial plants use gate valves widely.
5. What standards are followed for gate valves?
Common standards include API 600, API 602, API 6D, ASME B16.34, and API 598 depending on valve type.
6. What is the difference between cast steel and forged steel gate valve?
Cast steel gate valves are generally used in broader industrial sizes and services, while forged steel gate valves are more compact and often selected for high-pressure service.
7. What is API 6D gate valve?
It is a gate valve designed for pipeline service with requirements aligned to API 6D for transmission and pipeline applications.
8. What is rising stem gate valve?
It is a gate valve in which the stem moves visibly upward when the valve opens, showing the valve position externally.
9. What is non-rising stem gate valve?
It is a compact gate valve design where the stem does not rise outside the valve body during operation.
10. Which material is suitable for high temperature gate valve service?
Materials such as WC6, WC9, alloy trims, and suitable hard-faced seats are often selected for high temperature service.
11. Can gate valves be actuated?
Yes, gate valves can be supplied with electric actuators or gear operation depending on size and application requirement.
12. What causes leakage in gate valves?
Common causes include seat wear, trim damage, incorrect application, improper closure, or service erosion over time.
13. What trim options are available in gate valves?
Trim options may include carbon steel, stainless steel, alloy steel, and Stellite hard-faced arrangements depending on service duty.
14. Is knife edge gate valve the same as standard gate valve?
No. Knife edge gate valves are designed for slurry and difficult media, while standard wedge gate valves are used mainly for clean or conventional process isolation.
15. Why choose MNC Valves Limited for gate valves?
Because MNC Valves Limited provides technical selection support, application-based guidance, and industrial gate valve solutions suitable for project and process requirements.
