MNC Valves Ltd.

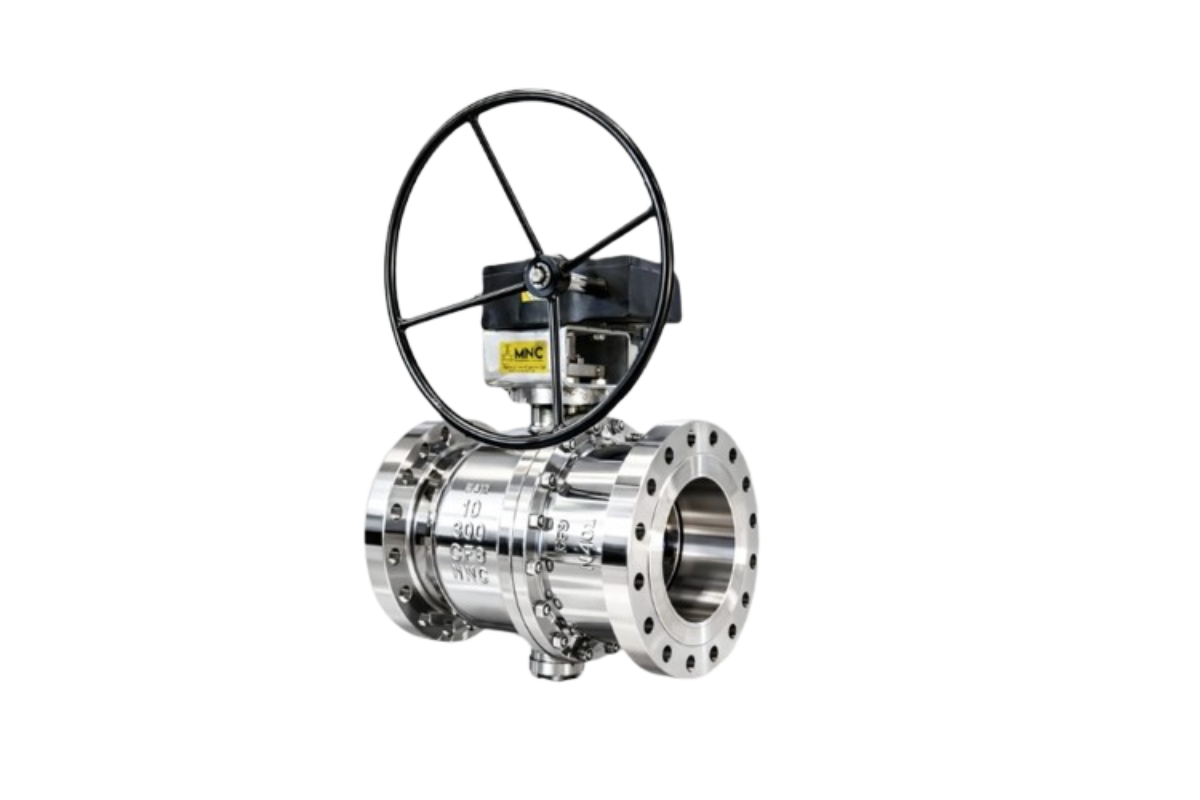

Trunnion Mounted Ball Valve Manufacturer in India
MNC VALVES LIMITEDÂ manufactures high-performance Trunnion Mounted Ball Valves engineered for high pressure duty, large size applications, reduced operating torque, and dependable shut-off in critical industrial services.
Suitable for high pressure and larger size applications
Lower operating torque compared to floating ball design
Available in flanged end and butt weld end configurations
Designed for critical shut-off duty and severe industrial service
Get a Quote
Download Catalogue
- MNC Valves Limited
- High Pressure Ball Valve Solutions
Introduction
MNC VALVES LIMITEDÂ is a trusted manufacturer and supplier of Trunnion Mounted Ball Valves developed for heavy-duty industrial service where higher pressure, larger sizes, severe operating conditions, and dependable shut-off are critical. These valves are selected in applications where stronger internal support and lower operating torque are important design priorities.
Trunnion mounted ball valves are widely used in oil & gas, power, process, pipeline, chemical, and industrial utility systems. Their supported ball design provides better load distribution and more stable operation in demanding pressure conditions compared to standard floating ball designs.
What is a Trunnion Mounted Ball Valve?
A Trunnion Mounted Ball Valve is a ball valve in which the ball is mechanically anchored by upper and lower trunnions instead of floating freely. This supported arrangement helps reduce the operating load on the seats and allows the valve to perform more effectively in higher pressure and larger size applications.
This valve category is commonly selected where the buyer needs high pressure shut-off, stable ball support, lower operating torque, longer seat life, and dependable sealing in critical industrial services.
Design & Construction
Trunnion Supported Ball
The ball is supported by trunnions, improving stability and reducing seat loading under pressure.
Heavy-Duty Body Design
Suitable for larger sizes and high pressure industrial service conditions.
Reduced Torque Operation
Helps improve operational efficiency in severe duty applications compared to floating ball types.
Key Internal Elements
- Upper and lower trunnion supported precision ball
- Seat system designed for secure sealing performance
- Anti-blowout stem design for operational safety
- Heavy-duty body and end connection construction
Operational Benefits
- Suitable for higher differential pressure conditions
- Better stability in larger size valves
- Can be used with gear, pneumatic, electric, or hydraulic actuation
- Reliable shut-off in critical process and pipeline service
Technical Specifications
Parameter
Details
Size Range
50 mm to 600 mm
Pressure Class
150#, 300#, 600# and above as required
End Connection
Flanged End / Butt Weld End
Design Standard
API 6D / ASME B16.34
Face to Face
ASME B16.10 / As per applicable standard
Testing Standard
API 598 / API 6D
Operation
Gear / Pneumatic / Electric / Hydraulic
Body Material
WCB / CF8 / CF8M / Other alloy grades as required
Seat Material
PTFE / RPTFE / PEEK / Metal Seat
Material Options
Body Material Selection
- WCB – suitable for general industrial and hydrocarbon service
- CF8 (SS304) – suitable where stainless steel construction is required
- CF8M (SS316) – preferred for corrosive and chemical media service
- Special Alloys – selected based on project, pressure, corrosion, or temperature requirements
Seat Material Selection
- PTFE – standard shut-off and industrial service
- RPTFE – improved seat strength and durability
- PEEK – used in higher performance applications
- Metal Seat – selected for severe service, higher temperature, or abrasive duty
Pressure & Temperature Range
Pressure Capability
Trunnion mounted ball valves are selected for higher pressure and more demanding industrial applications. Final class and wall thickness depend on line pressure, design code, size, and project specification.
Pressure Capability
Temperature capability depends on body material, seat type, and process condition. PTFE, RPTFE, PEEK, and metal seats are selected based on operating severity and application requirements.
Advantages
Lower Operating Torque
Reduces actuation effort in high pressure and large size service compared with floating ball designs.
Suitable for Heavy-Duty Service
Designed for critical shut-off applications where reliability under pressure is essential.
Improved Ball Stability
Mechanical support helps maintain better internal stability under demanding operating conditions.
Limitations
- Generally more expensive than floating ball valve designs
- Typically selected only where pressure, size, or service severity justifies the design
- Heavier and more engineered than standard general-duty ball valves
Applications
Oil & Gas
Suitable for high pressure shut-off duty and critical hydrocarbon service applications.
Pipeline Systems
Selected for line applications where stable shut-off and lower torque are important.
Power Plants
Used in high-duty utility and process systems requiring dependable isolation.
Chemical Industry
Suitable with correct body, seat, and alloy selection for demanding chemical service.
Process Industry
Applied where line severity, pressure, and valve reliability requirements are higher.
Industrial Utilities
Used in critical service systems where dependable long-term shut-off is necessary.
Comparison: Trunnion Mounted vs Floating Ball Valve
Feature
Trunnion Mounted Ball Valve
Floating Ball Valve
Ball Support
Mechanically supported by trunnions
Ball floats under pressure
Torque Requirement
Lower in high pressure and large size service
Higher in comparable severe conditions
Typical Application
High pressure, larger size, critical duty
General industrial and standard pressure duty
Cost
Higher
Lower
Engineering Selection Guide
Selection Criteria
- High pressure line service requirement
- Large size valve application
- Need for lower operating torque
- Critical shut-off duty and severe service requirement
Practical Notes
- Select trunnion mounted design where floating ball valves are not ideal for the pressure-size combination
- Use gear or powered actuation for larger sizes and critical operation
- Choose seat type based on pressure, media, and temperature conditions
- Match design standard and testing requirement with project specification
Manufacturing & Quality Assurance
Manufacturing Strength
- Heavy-duty engineered construction
- Precision machining for trunnion-supported ball systems
- Application-based material and seat selection
- Manufacturing discipline for critical-duty valve performance
Quality Control
- Hydrostatic and seat testing as per applicable standards
- Dimensional and visual inspection
- Controlled manufacturing quality checks
- Focus on dependable shut-off and long-term service performance
Why Choose MNC Valves Limited
25+ Years of Engineering Experience
Industrial understanding built through long market and application exposure.
Critical Duty Valve Support
Practical guidance for high pressure, larger size, and heavy-duty application selection.
Reliable Manufacturing Quality
Structured manufacturing approach for demanding service and dependable industrial performance.
Need Trunnion Mounted Ball Valves
Connect with MNC VALVES LIMITED for technical support, high pressure valve selection guidance, and quotation for your industrial requirement.
Get Instant Quote
Talk to Expert
Technical support for selection
Quotation support for project needs
Application-focused product guidance
Business-ready follow-up action
MNC Valve Limited Popular Products
Ball Valve
Butterfly Valve
Gate Valve
Globe Valve
Strainers Valve
Non Return Valve
Control Valve
Other Valve
Ball Valve
2 Piece Flanged End Ball Valve
3 Piece Flanged End Ball Valve
3 Piece Screwed Ball Valve
3 Way Flanged End Ball Valve
3 Way Screwed Ball Valve
4 Way Screwed Ball Valve
4 Way Flanged Ball Valve
Single Piece Screwed Ball Valve
Trunnion Mounted Ball Valve
Butterfly Valve & Gate Valve
Damper Butterfly Valve
Double Flanged Butterfly Valve
Double Offset Butterfly Valve
Lug Type Butterfly Valve
High Performance Spherical Disc Butterfly Valve
Wafer Type Butterfly Valve
Knife Edge Gate Valve
Strainers Valve
Basket Strainer
Duplex Strainer
Pot Type Strainer
T Type Strainer
Y Type Strainer
Non Return Valve
Disc Check Valve
Dual Plate Check Valve
Swing Check Valve
Control Valve
Diaphragm Control Valve
Motorized Control Valve
Pneumatic Control Valve
Three Way Control Valve
Two Way Control Valve
Other Valve
Flush Bottom Ball Valve
Reactor Bottom Valve
Technical FAQs
1. What is a Trunnion Mounted Ball Valve?
It is a ball valve in which the ball is mechanically supported by upper and lower trunnions for better stability and lower torque in demanding service.
2. Why is trunnion mounting used?
It is used to reduce operating torque and improve performance in high pressure and larger size valve applications.
3. What is the size range of this valve?
A practical range for this product page is 50 mm to 600 mm.
4. What pressure classes are available?
150#, 300#, 600# and above as required depending on project and service conditions.
5. What end connections are available?
Flanged end and butt weld end configurations are commonly used.
6. What is the main advantage over floating ball valves?
The main advantage is better suitability for high pressure and large size applications with lower operating torque.
7. Is this valve suitable for oil & gas service?
Yes, it is widely used in oil & gas and critical pipeline-related applications.
8. What body materials are commonly used?
WCB, CF8, CF8M, and other alloy grades may be selected depending on the media and project requirement.
9. What seat materials are available?
PTFE, RPTFE, PEEK, and metal seat arrangements can be used depending on service severity.
10. Can it be used in corrosive media?
Yes, with suitable stainless steel or alloy material selection and proper seat configuration.
11. Can it be actuated?
Yes, gear, pneumatic, electric, and hydraulic actuation options can be provided depending on the application.
12. What testing standards are used?
Testing may be carried out as per API 598 and API 6D depending on valve type and project specification.
13. What applications justify trunnion mounted design?
High pressure, larger size, severe duty, and critical shut-off applications justify this design.
14. Is it more expensive than floating ball designs?
Yes, generally it is a more engineered and higher-cost solution because of its heavy-duty design.
15. What is the benefit of mechanically supporting the ball?
It reduces stress on the seats and improves operational stability under demanding line pressure.
16. Is it suitable for larger size valves?
Yes, this design is specifically well suited for larger sizes compared with standard floating ball valves.
17. What maintenance is usually required?
Periodic inspection of seats, seals, ball surface, stem arrangement, and actuator or gear performance is recommended.
18. Can it be used in power plant and utility service?
Yes, it is suitable for critical shut-off duty in utility and high-duty industrial systems.
19. Why does this design help reduce torque?
Because the ball is mechanically supported, seat loading and friction effects are reduced in severe pressure conditions.
20. Why should I choose MNC VALVES LIMITED for trunnion mounted ball valves?
Because MNC VALVES LIMITED offers practical critical-duty valve solutions, reliable manufacturing quality, and application-based technical support.
