MNC Valves Ltd.

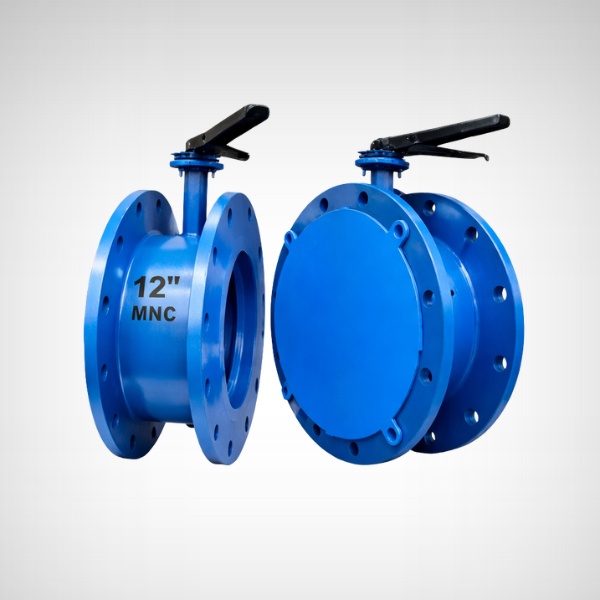

Double Flanged Butterfly Valve Manufacturer in India
MNC Valves Limited manufactures double flanged butterfly valves designed for robust pipeline mounting, stronger alignment support, reliable shut-off, and dependable performance across water, utility, industrial process, and heavy-duty service applications.
Strong double flanged end connection
Suitable for larger pipelines and robust installation needs
Useful where flange-supported mounting integrity is important
integrity is important
Manual, gear, pneumatic, and electric operated options
Get a Quote
Back to Butterfly Family
- MNC Valves Limited
- Double Flanged Butterfly Valve
Introduction
MNC Valves Limited offers double flanged butterfly valves for applications where stronger line mounting, better alignment support, and higher installation stability are important. Double flanged construction is widely selected in larger diameter lines and heavier-duty systems where stronger flange-supported body connection is preferred over wafer or lug style mounting.
Double flanged butterfly valves are commonly used in water transmission lines, treatment plants, industrial utilities, power support systems, and process piping where robust installation and dependable service performance are required.
What is a Double Flanged Butterfly Valve?
A double flanged butterfly valve is a butterfly valve with integral flanges on both sides of the body. These flanges allow direct bolting into the pipeline, giving stronger mounting support and better mechanical stability than more compact between-flange designs.
This design is commonly selected where the buyer needs robust installation, better pipeline alignment, stronger body support, and confidence in larger or heavier service lines.
Design & Construction
Integral Double Flange Body
The body is provided with flanges on both sides, giving direct bolted line mounting and stronger structural support.
Quarter-Turn Operation
The disc rotates 90 degrees for opening and closing, providing fast shut-off and practical flow control.
Robust Installation Support
Double flanged construction is useful in larger pipelines where mounting stability and alignment are important.
Key Internal Elements
- Disc mounted on central shaft
- Seat selected according to pressure, media, and temperature
- Integral flanged body construction
- Suitable for gear and actuated operation in larger sizes
Operational Benefits
- Better flange-supported body connection
- Useful for larger line sizes
- Improved installation confidence
- Strong option for water and industrial systems
Technical Specifications
Parameter
Details
Value Type
Double Flanged Butterfly Valve
Size Range
DN 50 to DN 1500
Pressure Rating
PN10 / PN16 / PN25 / PN40 depending on design
Body Material
CI / DI / WCB / CF8 / CF8M
Disc Material
SG Iron / SS304 / SS316
Seat Material
SS410 / SS304
End Connection
Double Flanged
Design Standard
API / BS / EN as applicable
Testing Standard
API 598
Material Selection Guide
Body & Disc Material
- CI / DI – suitable for water transmission, treatment, and utility applications
- WCB – suitable for stronger industrial and process service
- CF8 / CF8M – selected for corrosive and stainless steel service conditions
- SS Disc – useful where media compatibility and corrosion resistance are important
Seat Selection
- EPDM – suitable for water and utility service
- NBR – selected for oil-related applications
- PTFE – suitable for chemical compatibility
- Metal Seat – selected for higher temperature and more demanding shut-off duty
Where Double Flanged Butterfly Valve is Best Used
Requirement
Suitability
Strong flange-supported body connection
Excellent
Larger diameter pipelines
Highly suitable
Water transmission and treatment lines
Highly suitable
Industrial utility service
Highly suitable
Most compact and economical installation
Wafer type may be more suitable
End-of-line flexible maintenance arrangement
Lug type may be better
Engineering Considerations
Selection Logic
- Select double flanged design where stronger body support is important
- Use this design for larger sizes and critical line stability requirements
- Choose seat and disc materials according to media, pressure, and temperature
- Use gear or actuator in larger sizes where manual effort is higher
Practical Notes
- Double flanged design is often preferred in major water and industrial lines
- For a more compact and economical alternative, wafer type may still be selected
- For maintenance-focused end-of-line service, lug type may offer better flexibility
- Proper flange alignment and bolting remain important for performance
Applications
Water Transmission
Highly suitable for larger water pipeline systems where stronger flanged mounting is required.
Water Treatment Plants
Used in treatment lines, filtration systems, and plant utility piping where dependable shut-off is important.
Power Plant Utilities
Applicable in cooling and support systems where robust valve installation is beneficial.
Industrial Utility Systems
Suitable for large utility and process-support lines across multiple industries.
ETP / STP
Useful in wastewater and treatment-related systems requiring larger-size line control.
General Industrial Service
Widely applicable in process, utility, and compact line installations.
Double Flanged vs Wafer Type Butterfly Valve
Parameter
Damper Butterfly Valve
Standard Butterfly Valve
Installation
Direct flanged body mounting
Between two flanges
Body Support
Stronger
More compact
Size Suitability
Better for larger sizes
Good for compact and economical lines
Cost
Higher than wafer type
More economical
Installation Footprint
Larger
More compact
Failure Causes & Maintenance Guide
Common Failure Reasons
- Seat wear due to incorrect material selection
- Disc damage or shaft misalignment
- Leakage from improper bolting or flange mismatch
- Operating difficulty due to build-up or actuator mismatch
Maintenance Recommendations
- Inspect seat, disc, and shaft during shutdown
- Confirm flange alignment and bolting condition
- Use correct actuator or gear sizing for larger valves
- Check performance in frequent cycling applications
Manufacturing & Quality at MNC Valves Limited
Manufacturing Strength
- Application-based manufacturing approach
- Structured support for large-size industrial valve supply
- Focus on reliable fitment and installation performance
- Broad experience in industrial valve applications
Quality Control
- Inspection support for sealing and fitment
- Testing aligned with applicable standards
- Emphasis on dependable operation and shut-off
- Confidence-oriented supply approach for industrial buyers
Need Double Flanged Butterfly Valve?
Contact MNC Valves Limited for technical guidance, product selection support, and quotation for your industrial requirement.=
Get Instant Quote
Talk to Expert
Technical support for selection
Quotation support for project needs
Application-focused product guidance
Business-ready follow-up action
MNC Valve Limited Popular Products
Ball Valve
Butterfly Valve
Gate Valve
Globe Valve
Strainers Valve
Non Return Valve
Control Valve
Other Valve
Ball Valve
2 Piece Flanged End Ball Valve
3 Piece Flanged End Ball Valve
3 Piece Screwed Ball Valve
3 Way Flanged End Ball Valve
3 Way Screwed Ball Valve
4 Way Screwed Ball Valve
4 Way Flanged Ball Valve
Single Piece Screwed Ball Valve
Trunnion Mounted Ball Valve
Butterfly Valve & Gate Valve
Damper Butterfly Valve
Double Flanged Butterfly Valve
Double Offset Butterfly Valve
Lug Type Butterfly Valve
High Performance Spherical Disc Butterfly Valve
Wafer Type Butterfly Valve
Knife Edge Gate Valve
Strainers Valve
Basket Strainer
Duplex Strainer
Pot Type Strainer
T Type Strainer
Y Type Strainer
Non Return Valve
Disc Check Valve
Dual Plate Check Valve
Swing Check Valve
Control Valve
Diaphragm Control Valve
Motorized Control Valve
Pneumatic Control Valve
Three Way Control Valve
Two Way Control Valve
Other Valve
Flush Bottom Ball Valve
Reactor Bottom Valve
Technical FAQs
1. What is a double flanged butterfly valve?
It is a butterfly valve with integral flanges on both sides of the body for direct bolted line mounting.
2. Where is double flanged butterfly valve commonly used?
It is commonly used in water transmission, treatment plants, utilities, and larger industrial pipelines.
3. Why is double flanged preferred for large pipelines?
Because it offers stronger flange-supported mounting and better installation stability in larger sizes.
4. What is the difference between double flanged and wafer type butterfly valve?
Double flanged has integral flanges on the body, while wafer type is installed between two pipeline flanges.
5. Is double flanged stronger than wafer type?
Yes, in many larger and heavier-duty applications, double flanged design offers stronger body support.
6. What seat materials are commonly used?
EPDM, NBR, PTFE, and metal seats are commonly used depending on service requirement.
7. Can double flanged butterfly valve be actuated?
Yes, pneumatic and electric actuated versions are commonly provided.
8. What industries use double flanged butterfly valves?
Water, utility, power, wastewater, and large industrial service sectors use them widely.
9. What body materials are available?
CI, DI, WCB, CF8, and CF8M are commonly available depending on requirement.
10. Is double flanged suitable for chemical service?
Yes, with proper body, disc, and seat selection, it can be used in selected chemical applications.
11. What pressure ratings are available?
PN10, PN16, PN25, and higher designs may be available depending on construction.
12. What causes leakage in double flanged butterfly valves?
Common causes include wrong seat selection, disc damage, or improper flange alignment and bolting.
13. Is double flanged suitable for throttling service?
It can be used for throttling depending on design and application conditions.
14. Why is gear operation common in double flanged valves?
Because these valves are often used in larger sizes where manual lever operation is not practical.
15. Is double flanged the best option for all butterfly valve applications?
No. It is best where stronger mounting and larger line support are required, while wafer or lug type may be better in other situations.
